Key facts
- Brand
- Sampo
- Model
- SR-476G
- Category
- Other
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-19
Start here

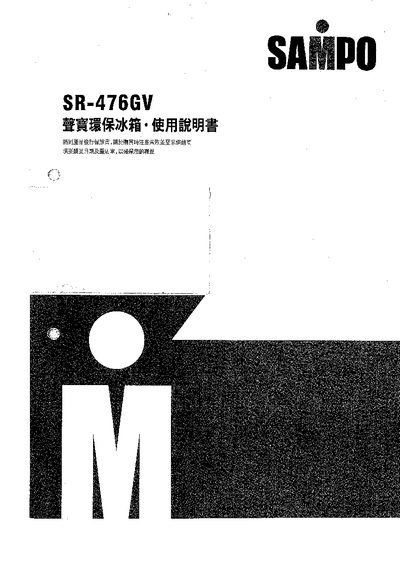

SAMPO environmentally friendly Refrigerator SR-476GV owners manual
This manual covers important safety precautions, including proper grounding, avoiding water contact, and keeping flammable materials away from the appliance. It also explains how to place the refrigerator on a level, well‑ventilated surface, and how to protect it from direct sunlight and high temperature environments.
Detailed usage guidance is provided for everyday operation, emergency handling, component functions, and cleaning of accessories such as the ice‑making box, beverage rack, and evaporator. The final section lists technical specifications such as voltage, frequency, power consumption, refrigerant type, and weight. This manual is written in Chinese.
Sampo SR-476G specifications
| Rated voltage | 110 V |
|---|---|
| Rated frequency | 60 Hz |
| Motor power consumption | 141 W |
| Heater power consumption | 130 W |
| Total internal volume | 470 L |
| Freezer / Refrigerator volume | 125 L / 345 L |
| Monthly power consumption | 65 kWh |
| Energy efficiency | 8.75 L/kWh |
| Refrigerant type | R‑134a |
| Refrigerant charge | 140 g |
| Product weight | 80 kg |
All Sampo SR-476G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the refrigerator be grounded?
Connect the grounding wire to the dedicated grounding screw on the left side of the back of the water tank.
What temperature can the freezer achieve according to the CNS standard?
The freezer can reach -12 °C for the 4‑star rating, -15 °C for 3‑star, and -18 °C for 2‑star and 4‑star ratings.
What should I do if the refrigerator catches fire or overheats?
Immediately stop the unit and unplug the power plug.
From: SAMPO environmentally friendly Refrigerator SR-476GV owners manual
Can glass bottles of beer or soda be placed in the freezer compartment?
No. They may expand, causing the glass to break or explode.
From: SAMPO environmentally friendly Refrigerator SR-476GV owners manual
