Key facts
- Brand
- Sampo
- Model
- ES-D13S
- Category
- Washing Machines
- Documents
- 2
- Languages
- JA
- Last added
- 2012-03-20
Start here

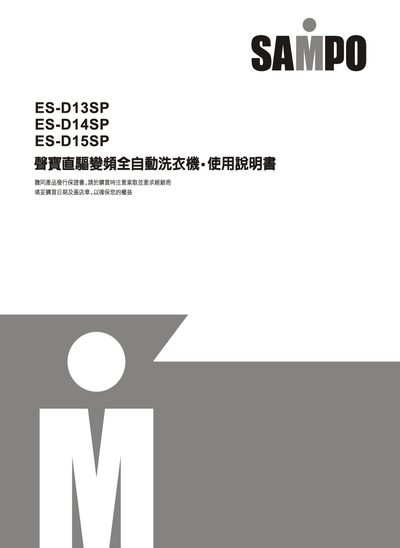

Sampo ES-D13SP/ES-D14SP/ES-D15SP Washing Machine User Manual
This manual explains how to safely install and set up the Sampo ES‑D13SP, ES‑D14SP, and ES‑D15SP front‑load washing machines. It includes precautions for leveling, water and power connections, and guidance on selecting the appropriate installation location.
The guide details each washing program, control‑panel functions, memory and reservation features, combined cycles, and cleaning/maintenance steps. Troubleshooting tips and full technical specifications are also provided. This manual is written in Japanese.
Sampo ES-D13S specifications
| Power Supply | 110 V / 60 Hz |
|---|---|
| Power Consumption | 280 W (ES‑D13SP), 290 W (ES‑D14SP), 310 W (ES‑D15SP) |
| Water Pressure | 0.03–0.8 MPa (0.3–8 kgf/cm²) |
| Washing Method | Drum type |
| Weight | 53 kg |
| Standard Water Usage | ≈285 L per standard cycle |
| Dimensions (W×D×H) | 642 mm × 657 mm × 1023 mm |
| Maximum Load | 13 kg (ES‑D13SP), 14 kg (ES‑D14SP), 15 kg (ES‑D15SP) |
| Inlet Water Temperature Range | 5 °C – 35 °C |
Source: Sampo ES-D13SP/ES-D14SP/ES-D15SP Washing Machine User Manual
All Sampo ES-D13S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What water pressure is required for the machine?
The washer operates with a water inlet pressure of 0.03 to 0.8 MPa (0.3–8 kgf/cm²).
From: Sampo ES-D13SP/ES-D14SP/ES-D15SP Washing Machine User Manual
How many washing programs are available?
Seven washing modes are provided: Standard, Gentle, Strong, Memory, Soak, Light Wash, and a combined Cold‑Air Dry cycle.
From: Sampo ES-D13SP/ES-D14SP/ES-D15SP Washing Machine User Manual
