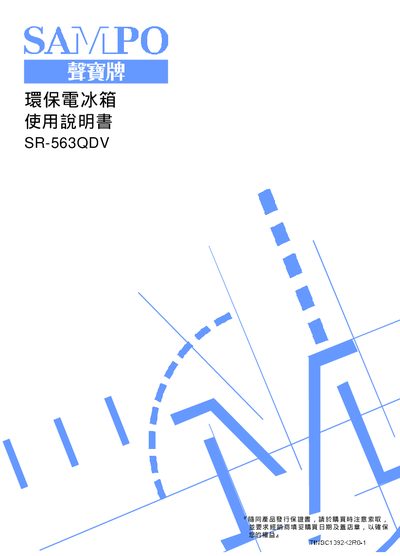

SAMPO SR-563QDV environmentally friendly Refrigerator Manual
This manual provides detailed instructions for using the SR-563QDYV refrigerator, including the functions of each compartment, how to adjust temperature, and proper placement of accessories such as the ice tray and beverage shelf. It also explains the principle of the built‑in platinum deodorizing material and how to maintain the evaporator and drain pipe.
Safety guidelines cover electrical grounding, avoiding placement of glass bottles in the freezer, and precautions when cleaning or moving the unit. Troubleshooting tips help identify common issues like ice buildup, water leakage, and abnormal noises, with contact information for authorized service centers. This manual is written in Chinese.
Sampo SR-563QD specifications
| Rated Voltage (CV) | 110 V |
|---|---|
| Rated Frequency (CHZ) | 60 Hz |
| Motor Power Consumption (CW) | 165 W |
| Heater Power Consumption (CW) | 140 W |
| Total Net Capacity (CL) | 580 L |
| Refrigerator/Freezer/Veggie Compartment Volumes | 153/302/125 L |
| Refrigerant Charge | 145 g |
| Weight | 95 kg |
Source: SAMPO SR-563QDV environmentally friendly Refrigerator Manual
All Sampo SR-563QD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How often should the drain pipe be cleaned?
The drain pipe should be cleaned every six months to one year to prevent blockage and ensure proper drainage.
From: SAMPO SR-563QDV environmentally friendly Refrigerator Manual
