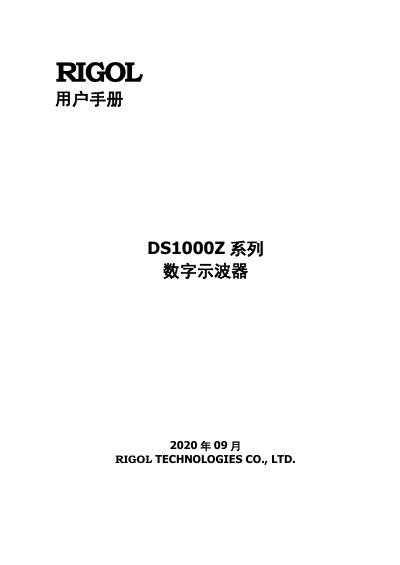

This manual covers the operation, safety requirements, and specifications for the RIGOL DS1000Z series digital oscilloscopes.
The RIGOL DS1000Z series is a high-performance digital oscilloscope based on UltraVision technology. It features high storage depth, wide dynamic range, excellent display effects, and comprehensive trigger functions suitable for various fields including communications and embedded systems.
This user manual provides instructions on safety requirements, environmental specifications, measurement categories, maintenance, cleaning procedures, and basic operation steps such as power connection and startup checks. This manual is written in Chinese.
| Bandwidth | 100 MHz, 70 MHz, or 50 MHz |
|---|---|
| Real-time Sampling Rate (Analog) | 1 GSa/s |
| Storage Depth | 24 Mpts |
| Waveform Capture Rate | 30,000 wfms/s (point display) |
| Screen Resolution | 800*480 WVGA |
| Input Voltage Range | 100 V-240 V, 45 Hz-440 Hz |
| Operating Temperature | 0°C to +50°C |
The DS1000Z series digital oscilloscope allows measurements in Measurement Category I.
Ensure at least a 10 cm gap on both sides, above, and behind the oscilloscope when using it in a workbench or rack.
Disconnect power, then wipe the exterior with a soft cloth dampened with mild cleaner or water.
