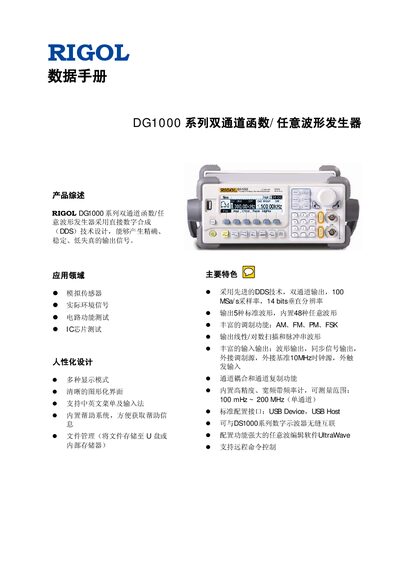

The RIGOL DG1000 series dual‑channel function/arbitrary waveform generator datasheet provides specifications, features and operation details.
The DG1000 series uses direct‑digital‑synthesis (DDS) technology to generate precise, low‑distortion signals on two independent channels. It offers 100 MSa/s sampling, 14‑bit vertical resolution, and built‑in frequency counter covering 100 mHz – 200 MHz.
The instrument includes 5 standard waveforms, 48 built‑in arbitrary waveforms, extensive modulation options (AM, FM, PM, FSK), and a powerful UltraWave software for editing and storing custom waveforms. It supports USB Device/Host interfaces and can be remotely controlled. This manual is written in Chinese.
| Sampling Rate | 100 MSa/s |
|---|---|
| Vertical Resolution | 14 bits |
| Frequency Range (single channel) | 1 µHz – 200 MHz |
| Output Amplitude | 2 mVpp – 10 Vpp (≤20 MHz), 2 mVpp – 5 Vpp (>20 MHz) |
| Built‑in Arbitrary Waveforms | 48 |
| Display Resolution | 256 × 64 pixels, 4‑level grayscale |
| Power Consumption | < 40 W |
| Operating Temperature | 10 °C – +40 °C |
The instrument can sample at up to 100 MSa/s.
It includes 48 built‑in arbitrary waveforms.
The output impedance is 50 Ω (typical value).
