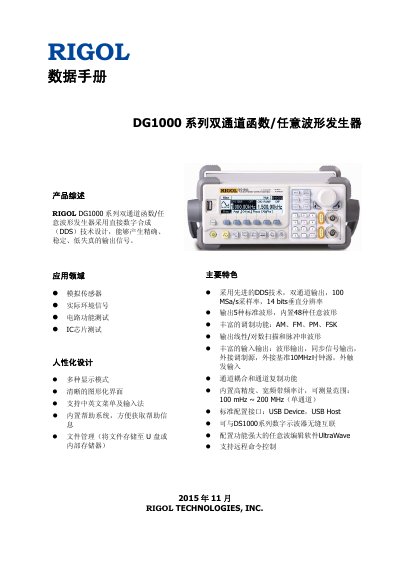

RIGOL DG1000 Series Dual-Channel Function/Arbitrary Waveform Generator Datasheet

About this manual

The RIGOL DG1000 Series Dual-Channel Function/Arbitrary Waveform Generator is designed using Direct Digital Synthesis (DDS) technology to produce precise, stable, and low-distortion output signals. Key features include dual-channel output with a sampling rate of 100 MSa/s, 14-bit vertical resolution, and the ability to generate 5 standard waveforms plus 48 built-in arbitrary waveforms. The instrument supports rich modulation functions (AM, FM, PM, FSK) and offers dual-channel coupling and copying capabilities. This manual is written in Chinese.

What's inside

• Product Overview
• Technical Specifications
• Waveform Characteristics
• Output Characteristics
• Modulation Functions
• Frequency Counter
• UltraWave Software
• General Specifications
• Protection Features

Specifications

Frequently asked questions

What is the measurement range of the built-in frequency counter?

The built-in frequency counter can measure frequencies from 100 mHz to 200 MHz.

How many arbitrary waveforms are stored internally and how many points does each waveform contain?

The instrument stores 48 built-in arbitrary waveforms, and the user can edit waveforms with a length of 4k points.

What is the maximum scan time setting for the sweep output function?

The sweep time setting range extends up to 500 seconds.
