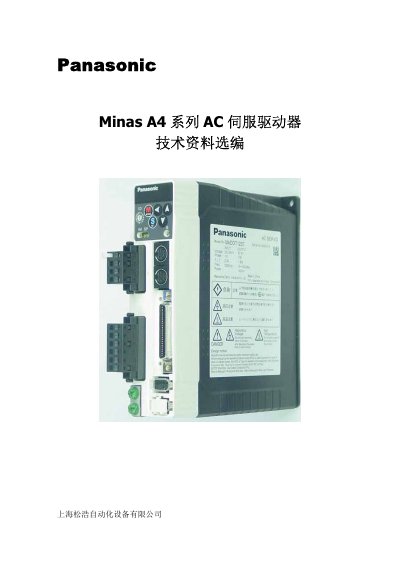

This document is a compilation of technical information about Panasonic Minas A4 series AC servo drives, including specifications, appearance and connectors, wiring diagrams, parameters, timing diagrams, protection functions, operating instructions, gain adjustment, control diagrams, etc.
The document provides technical data for the Panasonic Minas A4 series AC servo driver, including model designations, electrical ratings, mechanical dimensions, and control signal interfaces. It also lists environmental limits, expected service life, and mounting options.
Key sections cover model specifications, wiring diagrams, mounting dimensions, control modes (position, speed, torque), and detailed electrical parameters such as input voltage, rated power, and temperature ranges. This manual is written in Chinese.
| Input voltage (three‑phase) | 200 VAC, 50/60 Hz |
|---|---|
| Operating temperature range | 0 °C – 55 °C |
| Storage temperature range | -20 °C – 80 °C |
| Rated current (A‑type, single‑phase 100 V) | 5 A |
| Expected service life | 28 000 hours |
The servo driver is expected to operate for up to 28,000 hours under specified conditions.
The device can operate from 0 °C up to 55 °C.
It can be stored between –20 °C and 80 °C.
