About this manual

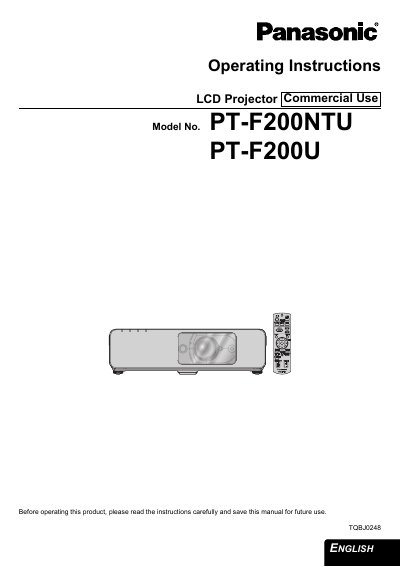

This manual provides operating instructions for the Panasonic PT-F200U series of commercial LCD projectors. It covers essential safety notices, initial setup steps including screen size and throw distance calculations, and connection methods for computers and AV equipment. The guide details how to switch the projector on and off, select input signals, adjust image position using keystone correction, and utilize features like the laser pointer and auto-setup.

What's inside

• Important Safety Notice
• Quick steps
• Setting up
• Connections
• Basic Operation
• Menu Navigation
• Maintenance
• Troubleshooting

Frequently asked questions

What voltage range is required to operate this projector?

The projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC house current.

What type of power cord is needed for voltages higher than 125 V?

You must obtain a separate 250 V power cord if you need to use higher voltages than 125 V.

What is the minimum spacing required between the antenna and a person's body during wireless operation?

A minimum 20 cm spacing must be provided between the antenna and all parts of a person's body.
