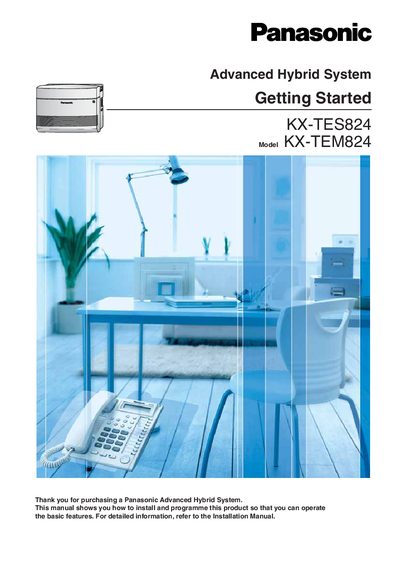

This manual shows you how to install and programme the Panasonic Advanced Hybrid System so that you can operate the basic features. For detailed information, refer to the Installation Manual. The KX-TES824 model supports 3 to 8 Outside (CO) Lines and 8 to 24 Extensions, while the KX-TEM824 model supports 6 to 8 Outside (CO) Lines and 16 to 24 Extensions.
This manual covers the Panasonic Advanced Hybrid System models KX‑TES824 and KX‑TEM824. It explains system components, line and extension expandability, and provides step‑by‑step guidance for installation, programming, and daily use.
Key sections include safety instructions, wiring and fuse replacement, wall‑mounting procedures, and details on optional service cards. The document also references additional resources such as the Installation Manual, Feature Guide, and Programming Table available on the supplied CD‑ROM.
| Outside (CO) Lines (KX‑TES824) | 3 to 8 |
|---|---|
| Extensions (KX‑TES824) | 8 to 24 |
| Outside (CO) Lines (KX‑TEM824) | 6 to 8 |
| Extensions (KX‑TEM824) | 16 to 24 |
Read and understand all instructions, unplug before cleaning, keep the unit away from water, heat sources, and ensure proper ventilation.
Open the fuse compartment with a screwdriver and replace the fuse and fuse cover.
Print the template, place it on the wall, install the screws as marked, and use anchor plugs for concrete or mortar walls.
The KX‑TES824 supports 3 to 8 outside (CO) lines and 8 to 24 extensions.
