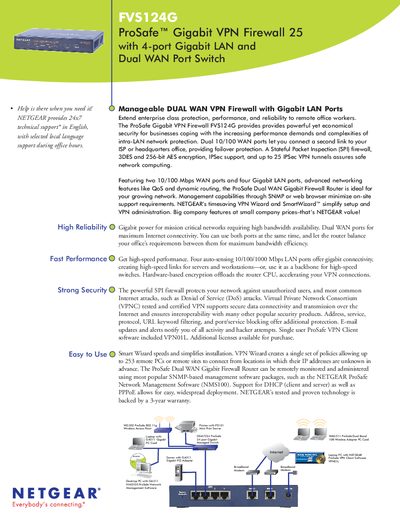

FVS124G ProSafe Gigabit VPN Firewall 25 with 4-port Gigabit LAN Dual WAN Port Switch Manual
The ProSafe FVS124G is a Gigabit VPN Firewall with four auto‑sensing Gigabit LAN ports and dual 10/100 Mbps WAN ports that support fail‑over and load balancing. It offers SPI firewall protection, IPSec VPN, and advanced routing features for small‑to‑medium business networks.
This manual covers hardware specifications, security and VPN features, installation steps, management interfaces (web GUI, SNMP, Telnet), and troubleshooting. It also lists environmental limits, warranty information, and required accessories.
NETGEAR FVS124G specifications
| LAN ports | Four 10/100/1000 Mbps auto‑sensing RJ‑45 ports |
|---|---|
| WAN ports | Two 10/100 Mbps Ethernet RJ‑45 ports with auto fail‑over |
| Processor | 200 MHz 32‑bit RISC |
| Memory | 4 MB Flash, 16 MB DRAM |
| Power requirements | 12 V DC, 1.2 A |
| Dimensions | 7.45 × 4.85 × 1.26 in. |
| Weight | 1.37 lb (0.62 kg) |
| WAN‑to‑LAN throughput | Up to 11.5 Mbps |
| 3DES throughput | Up to 2.1 Mbps |
| VPN tunnels | 25 dedicated tunnels |
| Supported users | Up to 253 LAN users |
Source: FVS124G ProSafe Gigabit VPN Firewall 25 with 4-port Gigabit LAN Dual WAN Port Switch Manual
All NETGEAR FVS124G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many VPN tunnels does the FVS124G support?
It supports up to 25 dedicated VPN tunnels.
From: FVS124G ProSafe Gigabit VPN Firewall 25 with 4-port Gigabit LAN Dual WAN Port Switch Manual
What are the WAN port specifications?
The device has two 10/100 Mbps Ethernet RJ‑45 WAN ports with auto fail‑over and load balancing.
From: FVS124G ProSafe Gigabit VPN Firewall 25 with 4-port Gigabit LAN Dual WAN Port Switch Manual
