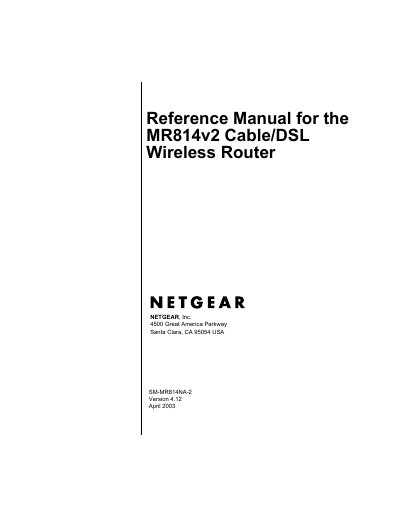

Netgear MR814v2 Cable/DSL Wireless Router Reference Manual
The Netgear MR814v2 is a cable/DSL wireless router that combines Ethernet connectivity with 802.11b Wi‑Fi. This reference manual guides users through installation, configuration, and maintenance of the device.
It covers connecting the router to an Internet service, wireless setup and security options, content filtering, advanced features such as port forwarding and VPN, and troubleshooting procedures. Technical specifications and regulatory compliance information are provided in the appendices.
NETGEAR MR814 specifications
| Network Protocols | TCP/IP, RIP‑1, RIP‑2, DHCP |
|---|---|
| Power Input (North America) | 120 V, 60 Hz |
| Power Output | 7.5 V DC @ 1 A (20 W max) |
| Dimensions | 28 × 175 × 118 mm |
| Weight | 0.3 kg (0.66 lb) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | up to 90 % non‑condensing |
| Wireless Data Rate | 1, 2, 5.5, 11 Mbps |
| Wireless Frequency | 2.4–2.5 GHz |
| Wireless Encryption | 40‑bit (64‑bit) and 128‑bit WEP |
Source: Netgear MR814v2 Cable/DSL Wireless Router Reference Manual
All NETGEAR MR814 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What FCC compliance does the MR814 router have?
The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
How far must a person stay from the router’s antenna during normal operation?
Human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
How can I reduce wireless interference caused by the router?
Reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, or connect the equipment to a different circuit.
From: Netgear MR814v2 Cable/DSL Wireless Router Reference Manual
What is the typical maximum number of computers supported on a wireless network?
The router can typically support 30 to 70 wireless nodes, depending on traffic.
From: Netgear MR814v2 Cable/DSL Wireless Router Reference Manual
