Start here

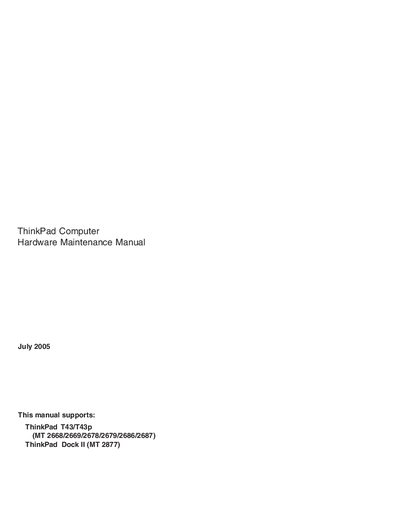

Lenovo ThinkPad T43/T43p Hardware Maintenance Service Manual
This Service Manual provides detailed service and reference information for the Lenovo ThinkPad T43/T43p series and the ThinkPad Dock II. It includes safety guidelines, FRU replacement procedures, and troubleshooting steps for trained service personnel.
The manual is organized into sections covering important service information, safety notices, FRU identification, product overview, specifications, and diagnostic testing, helping technicians efficiently repair and maintain these laptops.
Lenovo ThinkPad T43p specifications
| Processor | Intel® Pentium® M processor 730 (1.6 GHz), 2‑MB L2 cache |
|---|---|
| Bus Architecture | 533‑MHz PSB |
| Graphic Memory Chip | 32‑MB DDR SDRAM (ATI M22-32) |
| Display | 14.1‑inch, 16M colors, XGA (1024 × 768) TFT LCD |
| Standard Memory | 256‑MB DDR2‑533 SDRAM SO‑DIMM (PC2‑4200) × 1 |
Source: Lenovo ThinkPad T43/T43p Computer Hardware Maintenance Manual
All Lenovo ThinkPad T43p documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
Where can I find the general information that must be read before using this manual?
The general information is located under “Notices” on page 244.
From: Lenovo ThinkPad T43/T43p Hardware Maintenance Service Manual
What safety information should be reviewed before servicing a ThinkPad product?
Review the safety notices (multilingual translations) on page 8, the safety information on page 20, and the laser compliance statement on page 26.
From: Lenovo ThinkPad T43/T43p Hardware Maintenance Service Manual
What safety information should be reviewed before servicing a ThinkPad T43/T43p?
Review the safety notices in the multilingual translations section (page 8), the safety information section (page 20), and the laser compliance statement (page 26) before any service work.
From: Lenovo ThinkPad T43/T43p Computer Hardware Maintenance Manual
How should FRUs be replaced according to the manual?
Test each FRU individually and replace only the one that changes the symptoms; if a replacement does not fix the problem, reinstall the original FRU before proceeding.
From: Lenovo ThinkPad T43/T43p Computer Hardware Maintenance Manual
