Start here

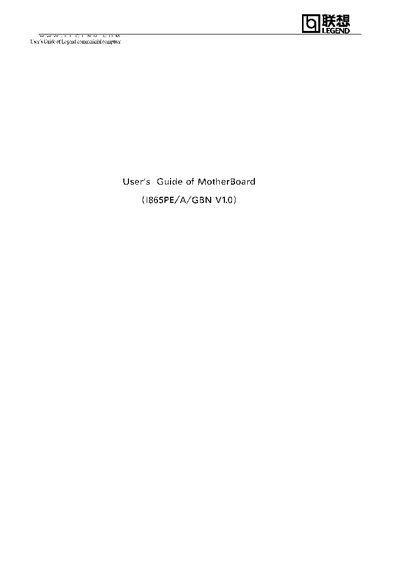

Legend I865PE/A/GBN Motherboard User Manual
This guide provides step‑by‑step instructions for installing the motherboard’s chip drivers, on‑board audio, Gigabit LAN, USB 2.0 controller, and Serial ATA devices. It also includes configuration details for dual‑channel DDR memory.
Each section lists the required CD directories, setup executables, and any special notes for Windows XP, 98, 2000, and Windows 2000 environments, helping users correctly configure the system after OS installation.
Lenovo I865PE A GBN specifications
| SATA ports | 2 |
|---|---|
| Memory slots | 4 DDR slots (dual‑channel) |
| Network interface | Gigabit Ethernet |
| USB interface | USB 2.0 |
All Lenovo I865PE A GBN documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many SATA ports are available on this motherboard?
The motherboard supports two SATA interfaces.
What type of memory slots does the board have?
It has four DDR memory slots arranged as a dual‑channel configuration.
How do I install the on‑board audio driver?
Insert the Legend driver CD, open the directory X:\LX_SOUND\ALC_A341, run Setup.exe, follow the prompts, and reboot the computer.
What is the installation directory for the USB 2.0 driver on Windows XP?
The driver is located at X:\Lx_USB2.0\Winxp\QFE\EN; run Q312370_WXP_SP1_x86_ENU.exe and follow the prompts.
