Key facts
- Brand
- Lenovo
- Model
- F8350
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-20
Start here

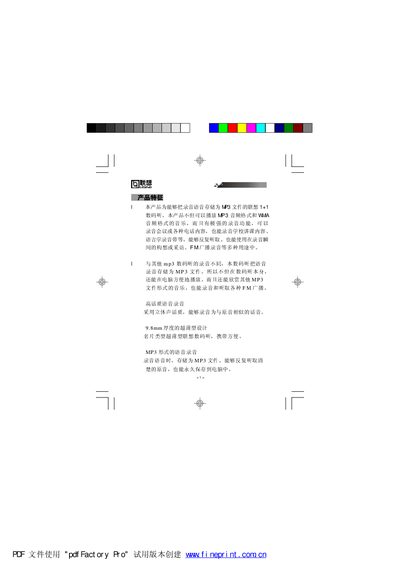

Lenovo F8350Plus Digital Voice Recorder User Manual
The F8350Plus is a thin, portable digital voice recorder that records speech directly to MP3 files and plays back MP3 and WMA audio. It supports multiple languages, FM radio recording, and includes a high‑precision omnidirectional microphone, stereo earphone output, and a USB interface for fast data transfer.
The manual details how to install the Ni‑MH rechargeable battery, charge via USB, power the device on and off, navigate the five operating modes, adjust recording quality, set VOR recording, and connect to a PC for file management. It also covers menu functions such as EQ settings, FM band selection, and file deletion. This manual is written in Chinese.
Lenovo F8350 specifications
| Battery type | Ni‑MH 1.2V strip rechargeable |
|---|---|
| Maximum storage capacity | 128 MB |
| Maximum recording time (LQ) | 2180 min |
| Earphone output | 6 mW(L) + 6 mW(R) into 16 Ω |
| Dimensions | 56 mm × 84 mm × 9.8 mm |
| Weight (without battery) | 37.1 g |
All Lenovo F8350 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I switch between the different operating modes?
Press the MODE key; a short press moves to the next mode, while holding the MODE key for more than 2 seconds opens the menu where you can select Voice, FM Radio, FM Recording, Audio, etc.
What languages does the recorder support?
The device supports Korean, Chinese, English, Japanese, European languages, and special characters.
How do I charge the Lenovo F8350?
Connect the device to a PC via the USB cable, open the USB cover, then select SYSTEM → CHARGE → ON in the menu.
How can I switch between the different operating modes?
Press and hold the MODE key for more than two seconds; each short press cycles to the next mode.
