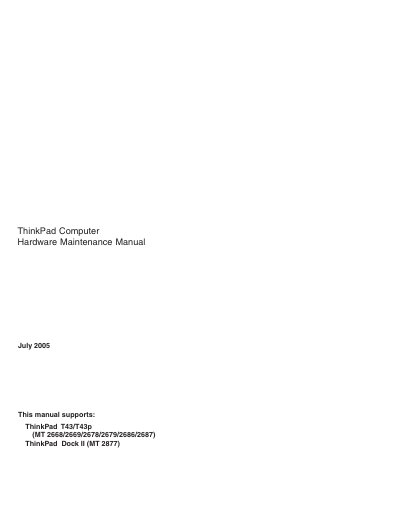

ThinkPad T43/T43p hardware maintenance manual
This Service Manual provides detailed hardware maintenance instructions for trained service personnel working on ThinkPad T43/T43p series laptops and the ThinkPad Dock II. It covers safety notices, FRU identification, replacement procedures, and diagnostic testing.
The document includes sections on general safety, power system checkout, specifications, status indicators, error‑code troubleshooting, and a comprehensive parts list with part numbers for each replaceable component.
| Processor | Intel® Pentium® M processor 730 (1.6 GHz), 2‑MB L2 cache |
|---|---|
| Bus Architecture | 533‑MHz PSB |
| Graphic Memory Chip | 32‑MB DDR SDRAM (ATI M22-32) |
| Display | 14.1‑inch, 16M colors, XGA (1024 × 768) TFT LCD |
| Standard Memory | 256‑MB DDR2‑533 SDRAM SO‑DIMM (PC2‑4200) × 1 |
Review the safety notices in the multilingual translations section (page 8), the safety information section (page 20), and the laser compliance statement (page 26) before any service work.
Test each FRU individually and replace only the one that changes the symptoms; if a replacement does not fix the problem, reinstall the original FRU before proceeding.
Run a low‑level format first and ensure the correct drive is selected to avoid overwriting data or programs.
From the Lenovo customer support site at http://www.lenovo.com/think/support.
