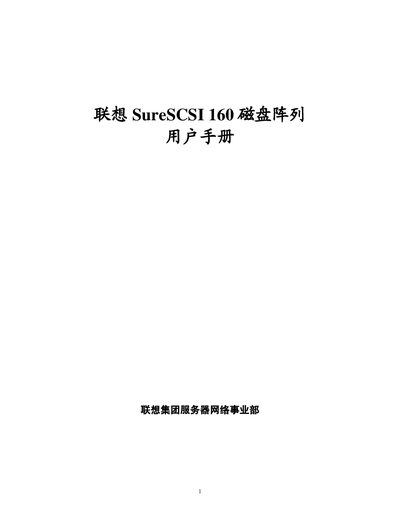

LENOVO surescsi 150 RAID user manual
This manual provides detailed instructions for installing, configuring, and safely operating the Lenovo SureSCSI 160 rack‑mount disk array. It includes safety warnings, required tools, and environmental requirements before installation.
The guide covers hardware installation, connection to host systems, power‑on checks, and indicator light meanings, helping technicians ensure proper setup and reliable operation of the storage system. This manual is written in Chinese.
Lenovo SureSCSI 160 specifications
| RAID controller | Mlex 170 FM D |
|---|---|
| Servers per cluster | 2 servers, each with 2 NICs |
| Public network IP addresses | 192.0.33.40, 192.0.33.44 |
| Private network IP addresses | 10.1.1.1, 10.1.1.2 |
All Lenovo SureSCSI 160 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the Hbst1D values be set on the RAID cards?
Set Hbst1D to 6 on one card and 7 on the other via the Advanced Options menu.
What IP addresses are used for the public and private cluster networks?
Public network uses 192.0.33.40 and 192.0.33.44; private network uses 10.1.1.1 and 10.1.1.2.
What firmware version is required for the RAID controller to enable clustering?
The RAID controller must have firmware version 7.01-10 or higher.
How many network adapters does each cluster node need?
Each node should have two network adapters – one for the public network and one for the private cluster network.
