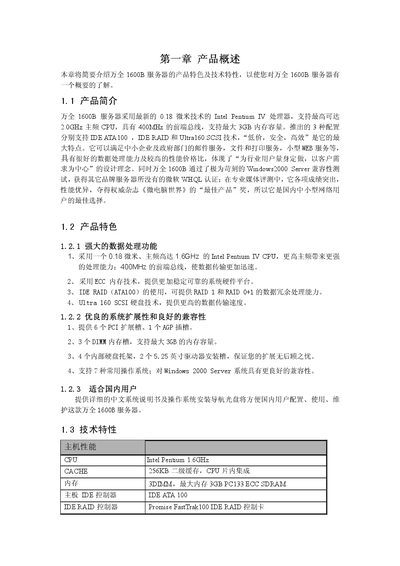

Lenovo ThinkServer 1600B Server User Manual
This manual introduces the Lenovo ThinkServer 1600B server, highlighting its Intel Pentium IV processor, ECC memory support, and flexible storage options. It outlines the server's design goals for small‑to‑medium businesses and government use.
The document details hardware installation procedures, component descriptions, safety warnings, and a FAQ section covering common setup and troubleshooting issues such as power‑up problems, CMOS clearing, and drive capacity discrepancies. This manual is written in Chinese.
Lenovo ThinkServer 1600 specifications
| CPU | Intel Pentium III FC-PGA 866/1000MV/1.13GHz |
|---|---|
| Cache | 256KB L2 cache |
| Maximum Memory | 1.5 GB PC133 ECC SDRAM |
| Front‑Side Bus | 133 MHz |
| IDE Controller | ATA 66/100 |
| SCSI Controller | Ultra 160 SCSI |
| Hard‑Drive Bays | 4 internal bays |
| Graphics | Integrated ATI graphics controller |
| CD‑ROM | 48× IDE drive |
| Floppy Drive | 1.44 MB |
| Power Supply | 300 W, 220 V 50 Hz |
| Dimensions | 470 mm × 210 mm × 505 mm |
| PCI Slots | 5 PCI slots |
| ISA Slots | 1 ISA slot |
| USB Ports | 2 USB ports |
Source: LENOVO ThinkServer 1600servers computer system user manual
All Lenovo ThinkServer 1600 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many PCI expansion slots does the ThinkServer 1600 have?
It provides five PCI expansion slots.
From: LENOVO ThinkServer 1600servers computer system user manual
What is the maximum memory capacity of the ThinkServer 1600?
The server can be equipped with up to 1.5 GB of PC133 ECC SDRAM.
From: LENOVO ThinkServer 1600servers computer system user manual
What should I check if the power indicator does not light?
Verify that all power cables are securely connected.
Why does an 18 GB SCSI drive appear as 17 GB in the BIOS?
Because the BIOS uses binary GB (1024 MB) while the drive manufacturer reports decimal GB (1000 MB), resulting in a lower displayed capacity.
