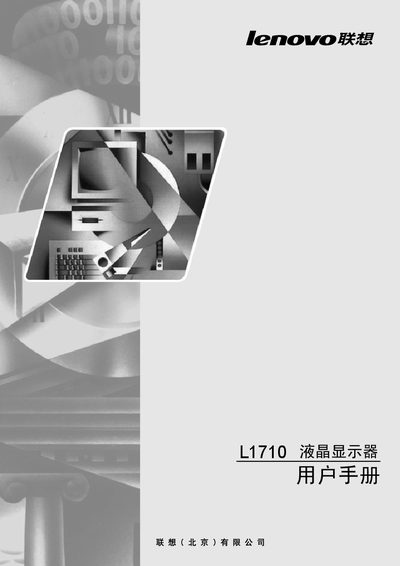

Lenovo L1710 LCD Monitor User Manual
This manual covers safety information, proper installation, and adjustment of the Lenovo L1710 LCD monitor. It explains how to connect power and video cables, adjust tilt, use on‑screen display controls, and maintain the unit safely.
The reference section lists detailed technical specifications, driver installation steps, and service support contacts. A troubleshooting guide helps resolve common display issues, and appendices provide regulatory and environmental information. This manual is written in Chinese.
Lenovo L171 specifications
| Screen Size | 43.2 cm (17") |
|---|---|
| Resolution | 1280 x 1024 @ 60 Hz |
| Input Interface | VGA (15‑pin connector) |
| Pin 15 Function | Video signal |
Source: Lenovo L171 Monitor User Manual
All Lenovo L171 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions should be followed when installing the Lenovo L171 monitor?
Do not place the monitor near water sources, avoid moving it without proper handling, keep it away from high‑voltage areas, and ensure it is properly grounded.
How do I connect the monitor to a computer?
Connect the VGA cable to the monitor’s 15‑pin VGA connector; the signal pins are labeled on the pin‑assignment table.
What safety information is included in the manual?
The manual provides safety information for the L1710 display.
Is the Lenovo L1710 monitor compatible with VESA mounting?
Yes, the manual includes VESA mounting specifications for the L1710.
Which Windows operating systems are supported by the Lenovo L1710?
The manual lists Windows Vista, Windows XP, and Windows 7 as supported operating systems.
From: Lenovo L1710 User Manual
What is the VESA mount number for the Lenovo L1710?
The VESA mount number is 22282.
From: Lenovo L1710 User Manual
