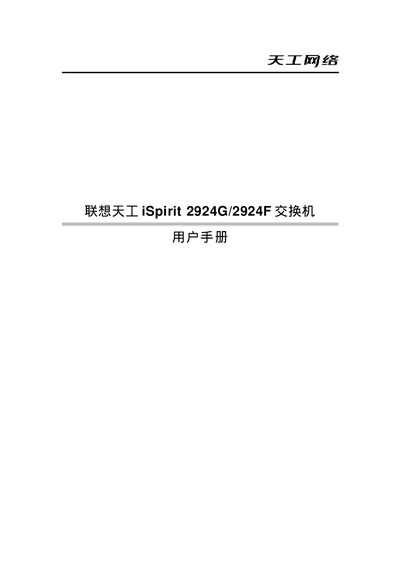

Lenovo iSpirit 2924G/2924F Switch User Manual
The Lenovo iSpirit 2924G/2924F is a managed Ethernet switch that provides 24 RJ‑45 10/100Base‑T ports, two 1000Base‑X uplink ports, a console port and an extend‑module slot. It supports VLAN, STP, QoS, IGMP snooping and other Layer‑2 features.
The manual describes hardware layout, installation steps, port configuration, VLAN and STP settings, as well as management interfaces such as CLI, Telnet, SNMP and a web GUI. It also includes troubleshooting tips and specifications for optical modules and RJ‑45 cabling. This manual is written in Chinese.
Lenovo iSpirit 2924G specifications
| Ethernet ports | 24 RJ‑45 10/100Base‑T auto‑negotiation ports |
|---|---|
| Expansion ports | 4 slots (Gigabit fiber, 10/100/1000Base‑T, stacking) |
| Maximum power consumption | 50 W |
| Supported VLANs | Up to 4094 VLANs |
| Maximum copper cable length | 140 m (CAT5) for 10/100/1000Base‑T |
| SFP multimode fiber reach | 275 m (62.5 µm, 850 nm) |
All Lenovo iSpirit 2924G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many Ethernet ports does the iSpirit 2924G/F switch have?
It provides 24 RJ‑45 10/100Base‑T auto‑negotiation ports.
What is the maximum power consumption of the switch?
The switch’s maximum power consumption is 50 W.
