Start here

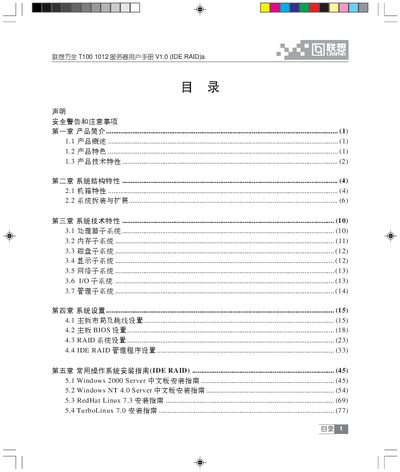

Lenovo ThinkServer T100 1012 User Manual
This manual introduces the ThinkServer T100 1012, covering safety warnings, system specifications, and technical characteristics. It explains the motherboard layout, BIOS settings, and RAID controller features, and provides detailed hardware specifications such as CPU, memory, storage, and expansion options.
The guide includes installation procedures for various operating systems (Windows 2000 Server, Windows NT 4.0, RedHat Linux, TurboLinux, NetWare), RAID configuration instructions, and a comprehensive troubleshooting chapter with event alarm functions and common fault resolutions. This manual is written in Chinese.
Lenovo T100 specifications
| CPU support | Intel Pentium IV 2.8 GHz or higher |
|---|---|
| Maximum memory | 4 GB DDR333/400 SDRAM |
| Network interface | Intel 10/100 Mb NIC |
Source: LENOVO ThinkServer T100/T400/T468 1008 Servers Computer user manualV1.0
All Lenovo T100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- LENOVO ThinkServer T100/T400/T468 1008 Servers Computer user manualV1.0 42 p
- Lenovo T100 1012 Server User Manual 103 p
- Lenovo ThinkServer T100 1012 User Manual 127 p
- Lenovo T100 1012 Server User Manual 111 p
- Lenovo ThinkServer T100 1012 Server User Manual 102 p
- Lenovo T100 1012 Server User Manual 102 p
- Lenovo ThinkServer T100 G10/T400 G10 Server User Manual 62 p
- Lenovo T100 G11/T400 G11 Server System User Manual 56 p
Questions answered in these manuals
What power source does the server require?
The server uses a 220 V AC power supply and must be connected with a three‑pin grounded plug.
From: LENOVO ThinkServer T100/T400/T468 1008 Servers Computer user manualV1.0
Which operating systems are supported?
Supported operating systems are Microsoft Windows 2000 Server (Simplified Chinese) and Microsoft Windows Server 2003 (Simplified Chinese).
From: LENOVO ThinkServer T100/T400/T468 1008 Servers Computer user manualV1.0
What RAID configurations are supported by the T100 1012?
The server supports RAID 1 and RAID 0+1 using the IDE RAID (ATA100) controller.
How many memory slots are available and what is the maximum memory capacity?
There are two DIMM slots that can hold up to 2 GB of DDR266 SDRAM.
How should the server be powered off before performing maintenance?
The power cord must be unplugged from the AC outlet before any operation; the front‑panel power button does not fully disconnect internal power.
How can I view hardware status using the Wise Eye monitoring system?
Press the server POWER button to start; the LCD lights up and Wise Eye begins. Use the four LCD keys to navigate menus and view configuration, sensor, and event information.
