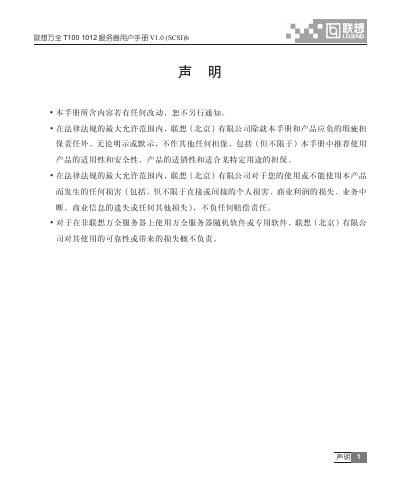

This document introduces the user manual of Lenovo Wanquan T100 1012 server. The document includes safety warnings and precautions, as well as precautions regarding electrostatic discharge and heat dissipation and ventilation. The document also mentions Lenovo (Beijing) Co., Ltd.'s warranty liability and compensation liability for damage caused by the use or inability to use the product.
The manual begins with safety warnings and precautions, describing proper handling, ESD protection, power‑off procedures, and environmental requirements before any installation. It then introduces the T100 1012 server hardware, covering chassis design, component layout, expansion slots, cooling fans, and the built‑in Wise Eye monitoring module.
Subsequent sections detail system setup, BIOS configuration, SCSI controller settings, and step‑by‑step operating‑system installation guides for Windows, Linux, and NetWare. The document also includes troubleshooting advice, event‑log handling, and an appendix describing the Wise Eye LCD menu and alarm functions. This manual is written in Chinese.
| CPU | Intel Pentium IV up to 2.8 GHz |
|---|---|
| Memory | Up to 2 GB ECC DDR266 SDRAM |
| Power Supply | 300 W ATX12V |
| Dimensions | 470 mm × 210 mm × 505 mm |
| Input Voltage | 220 V 50 Hz |
| Network Interface | Intel 10/100/1000 Mb NIC |
| Expansion Slots | 5 PCI slots, 1 AGP slot |
| Hard‑Drive Bays | 4 internal drive bays |
| Cooling Fans | 2 × 80 mm chassis fans |
The power cord must be unplugged from the AC outlet before any operation; the front‑panel power button does not fully disconnect internal power.
Press the server POWER button to start; the LCD lights up and Wise Eye begins. Use the four LCD keys to navigate menus and view configuration, sensor, and event information.
Press any LCD button to stop the buzzer or flashing alarm; then check the event log for details and address the reported condition.
