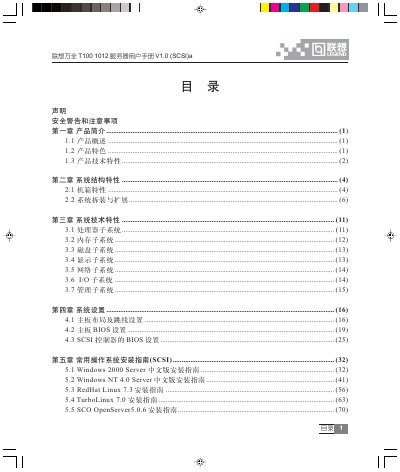

Lenovo Wanquan T100 1012 server user manual, introduces the overview, features, technical characteristics, system structure characteristics, system technical characteristics, system settings, common operating system installation guide, troubleshooting and other content
This manual introduces the Lenovo T100 1012 server, covering its hardware features, system architecture, and technical specifications such as the Intel Pentium IV CPU, DDR266 ECC memory, and Ultra 160 SCSI storage. It also explains the built‑in management module “慧眼” for real‑time monitoring.
The document includes detailed safety instructions, step‑by‑step operating‑system installation guides for Windows and Linux, system configuration settings, and a troubleshooting section with common fault explanations and solutions. This manual is written in Chinese.
| CPU | Intel Pentium IV, up to 2.8 GHz, 512 KB L2 cache, 533 MHz FSB |
|---|---|
| Memory | DDR266 ECC SDRAM, up to 2 GB |
| Storage | Ultra 160 SCSI hard drives, 4 drive bays |
| Expansion Slots | 5 PCI slots, 1 AGP slot |
| Network Interface | Intel 10/100/1000 Mb NIC |
| Power Supply | 220 V, 300 W ATX12V |
| Dimensions | 470 mm × 210 mm × 505 mm |
The power cord must be unplugged from the AC outlet before any work is performed.
