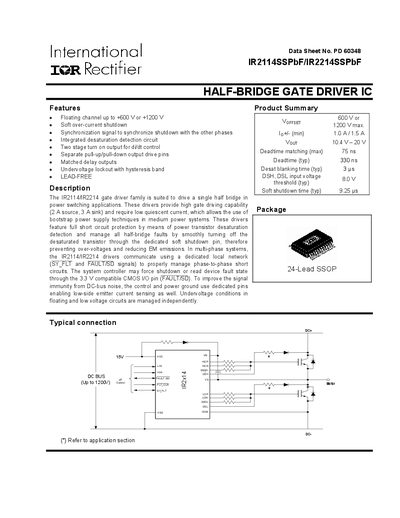

The IR2114/IR2214 gate driver family is suited to drive a single half bridge in power switching applications. These drivers provide high gate driving capability and require low quiescent current. They feature full short circuit protection and smoothly turn off the desaturated transistor through the dedicated soft shutdown pin, preventing over-voltages and reducing EM emissions.
The IR2114/IR2214 family is designed to drive a single half‑bridge in power‑switching applications. It offers high gate‑driving capability (2 A source, 3 A sink), soft over‑current shutdown, desaturation detection, and integrated fault management for multi‑phase systems.
Key specifications include a floating channel voltage up to +600 V or +1200 V, a 24‑lead SSOP package, typical deadtime of 330 ns, and soft‑shutdown timing of 9.25 µs. The datasheet also lists absolute maximum ratings, recommended operating conditions, and pin‑out details.
| Floating channel voltage | +600 V or +1200 V |
|---|---|
| Gate drive capability | 2 A source, 3 A sink |
| Typical deadtime | 330 ns |
| Desaturation blanking time (typ) | 3 µs |
| Soft shutdown time (typ) | 9.25 µs |
The drivers support a floating channel voltage of up to +600 V or +1200 V.
The typical deadtime is 330 ns.
The drivers can source 2 A and sink 3 A.
