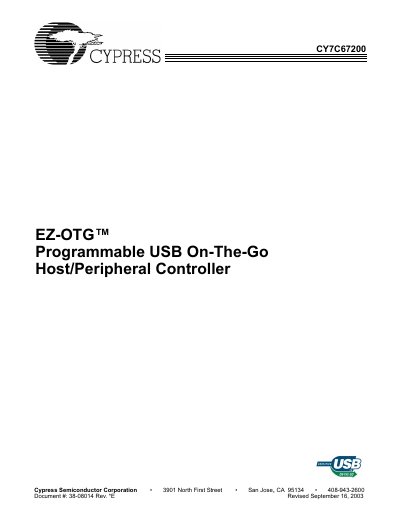

This document is a description of Cypress Semiconductor Corporation's CY7C67200, introducing the product's features and applications.
The CY7C67200 EZ-OTG™ controller provides a single‑chip, dual‑role USB host/peripheral solution. It includes a 16‑bit RISC processor running at 48 MHz, 4 K×16 masked ROM, 8 K×16 RAM, and supports USB OTG protocol, sleep power‑saving mode, and a configurable I/O block.
The device offers a wide range of interfaces—USB, OTG, GPIO, UART, I2C EEPROM, SPI, high‑speed serial (HSS), host‑port interface (HPI), charge‑pump, booster, crystal and boot‑configuration—making it suitable for cellular phones, PDAs, cameras, MP3 players, and mass‑storage devices.
| Processor core speed | 48 MHz |
|---|---|
| Power consumption (operational) | 50 mA |
| Power consumption (standby) | 30 mA |
| Supply voltage | 2.7 V to 3.6 V |
| Package type | 48‑pin FBGA |
| Internal ROM | 4 K × 16 bits |
| Internal RAM | 8 K × 16 bits |
The controller includes a 48 MHz 16‑bit processor.
It provides a Sleep mode that pauses all operations for the lowest power state.
Typical applications include cellular phones, PDAs, digital cameras, MP3 players, and mass‑storage devices.
