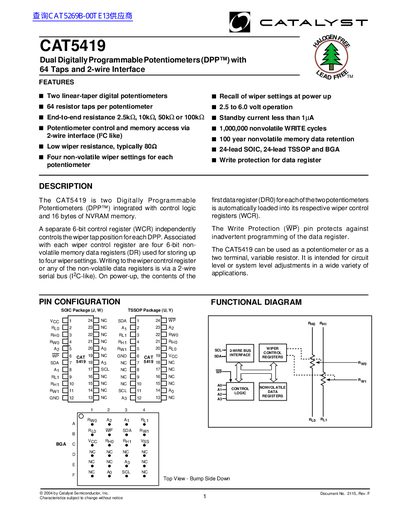

Catalyst CAT5419 Dual Digitally Programmable Potentiometer Datasheet
The CAT5419 is a dual digitally programmable potentiometer (DPP) featuring 64 resistor taps per potentiometer and a 2‑wire serial interface compatible with I2C. It includes four non‑volatile wiper settings, write protection, and up to 100‑year data retention, making it suitable for circuit‑level adjustments.
The device operates from 2.5 V to 6.0 V, provides a standby current of less than 1 µA, and supports up to 1 000 000 write cycles. It can be addressed on a shared bus with up to sixteen devices, and its pins are available in SOIC, TSSOP, and BGA packages.
Catalyst CAT5419 specifications
| Number of taps per potentiometer | 64 |
|---|---|
| End‑to‑end resistance options | 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
| Non‑volatile write cycles | 1,000,000 cycles |
| Data retention | 100 years |
| Operating voltage | 2.5 V to 6.0 V |
Source: Catalyst CAT5419 Dual Digitally Programmable Potentiometer Datasheet
All Catalyst CAT5419 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What interface does the CAT5419 use for control and memory access?
The CAT5419 uses a 2‑wire serial bus (I2C‑like) for potentiometer control and memory access.
From: Catalyst CAT5419 Dual Digitally Programmable Potentiometer Datasheet
What is the write cycle time for programming the device?
The write cycle time is specified as 5 ms.
From: Catalyst CAT5419 Dual Digitally Programmable Potentiometer Datasheet
What is the operating voltage range for the CAT5419?
The device operates from 2.5 V up to 6.0 V.
How many write cycles can the CAT5419's non‑volatile memory endure?
It can endure up to 1 000 000 write cycles per byte.
