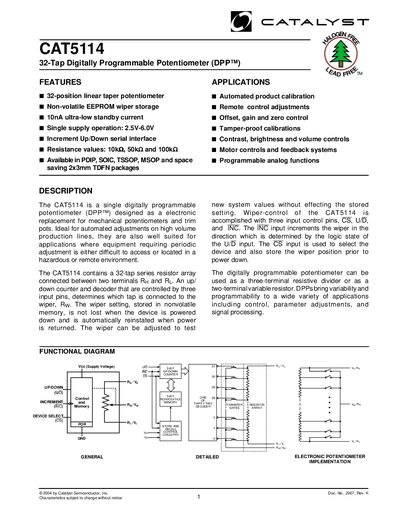

Catalyst CAT5114 Digital Potentiometer Datasheet
The CAT5114 is a 32‑tap digitally programmable potentiometer (DPP™) designed as an electronic replacement for mechanical potentiometers and trim pots. It offers non‑volatile EEPROM wiper storage, ultra‑low standby current, and single‑supply operation from 2.5 V to 6.0 V, making it suitable for automated calibration, remote control adjustments, and motor control feedback.
The document details the device’s functional diagram, pin configuration for multiple packages (PDIP, SOIC, TSSOP, MSOP, TDFN), absolute maximum ratings, reliability characteristics, and detailed electrical parameters such as supply current, input leakage, and timing specifications. Ordering information, package options, and revision history are also included.
Catalyst CAT5114 specifications
| Number of Tap Positions | 32 |
|---|---|
| Resistance Options | 10 kΩ, 50 kΩ, 100 kΩ |
| Package Options | PDIP, SOIC, TSSOP, MSOP, 2×3 mm TDFN |
| Maximum Operating Temperature (Industrial) | -40 °C to +85 °C |
All Catalyst CAT5114 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many tap positions does the CAT5114 provide?
It provides 32 tap positions, including the end points.
Which package types are available for the CAT5114?
The CAT5114 is offered in PDIP, SOIC, TSSOP, MSOP, and 2 × 3 mm TDFN packages.
What is the supply voltage range for the CAT5114?
The CAT5114 operates from 2.5 V up to 6 V.
From: Catalyst CAT5114 Digitally Programmable Potentiometer Datasheet
How many tap positions does the CAT5114 provide?
It provides 32 tap positions.
From: Catalyst CAT5114 Digitally Programmable Potentiometer Datasheet
