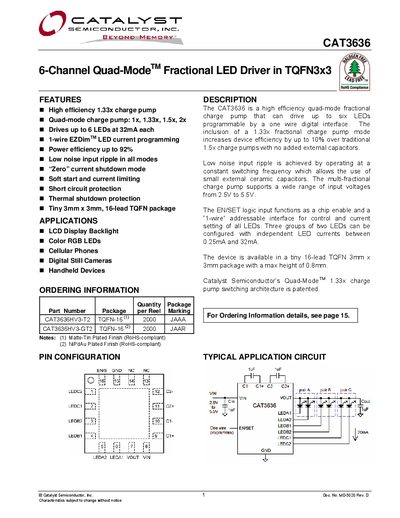

Catalyst Semiconductor CAT3636 Datasheet
The CAT3636 is a high‑efficiency quad‑mode fractional charge‑pump LED driver that can drive up to six LEDs with programmable currents via a one‑wire digital interface. It operates from 2.5 V to 5.5 V input, provides up to 92 % power efficiency, and includes features such as soft‑start, current limiting, short‑circuit and thermal‑shutdown protection.
Typical applications include LCD backlights, RGB LEDs, cellular phones, digital cameras and other handheld devices. Ordering information, pin configuration, electrical characteristics and timing diagrams are provided for designers, and the device is supplied in a 3 mm × 3 mm 16‑lead TQFN package.
Catalyst CAT3636 specifications
| Output voltage (max) | 7 V |
|---|---|
| Total output current | 192 mA |
| Power efficiency | up to 92 % |
| Quiescent current (1.33× mode, VIN=3.3 V) | 2.8 mA |
| Thermal shutdown temperature | 150 °C |
| Package | 3 mm × 3 mm 16‑lead TQFN |
All Catalyst CAT3636 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many LEDs can the CAT3636 drive?
It can drive up to six LEDs, each up to 32 mA.
What does the EN/SET pin do?
EN/SET is the device enable and 1‑wire addressable control input for all LED channels.
How many LEDs can the CAT3636 drive and at what current?
It can drive up to six LEDs, each programmable from 0.25 mA to 32 mA.
What is the package size of the CAT3636?
The part is offered in a 3 mm × 3 mm, 16‑lead TQFN package.
