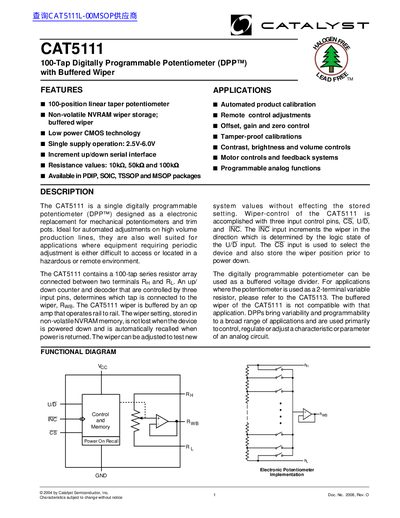

Catalyst CAT5111 Digitally Programmable Potentiometer Datasheet
The CAT5111 is a single digitally programmable potentiometer (DPP) designed as an electronic replacement for mechanical potentiometers. It features a 100-position linear taper, non-volatile memory to store the wiper position, and low power CMOS technology suitable for single supply operation between 2.5V and 6.0V.
The device is controlled via three input pins: Chip Select (CS), Up/Down (U/D), and Increment (INC). It offers various resistance values including 10kΩ, 50kΩ, and 100kΩ and is available in PDIP, SOIC, TSSOP, and MSOP packages. Applications include automated calibration, remote control adjustments, and programmable analog functions.
Catalyst CAT5111 specifications
| Supply Voltage Range | 2.5V to 6.0V |
|---|---|
| Number of Taps | 100-position |
| Resistance Values | 10kΩ, 50kΩ, and 100kΩ |
| Operating Temperature (Industrial) | -40°C to +85 °C |
| Resistance Tolerance | ±20 % |
Source: Catalyst CAT5111 Digitally Programmable Potentiometer Datasheet
All Catalyst CAT5111 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the main function of the CAT5111?
It acts as an electronic replacement for mechanical potentiometers and trimpots, providing variability and programmability to control analog circuit parameters.
From: Catalyst CAT5111 Digitally Programmable Potentiometer Datasheet
How is the wiper position stored?
The wiper setting is stored in non-volatile NVRAM memory and is not lost when the device is powered down.
From: Catalyst CAT5111 Digitally Programmable Potentiometer Datasheet
