Start here

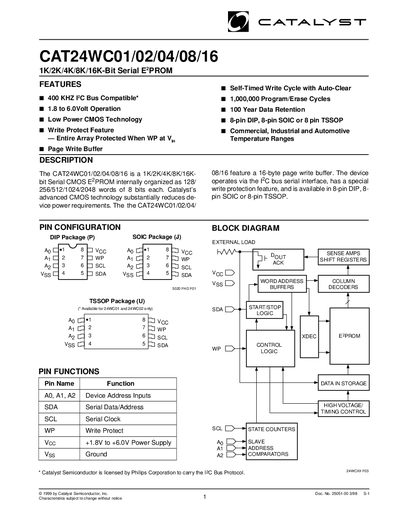

Catalyst CAT24WC01/02/04/08/16 Serial E-PROM Datasheet
The CAT24WC01/02/04/08/16 is a family of Serial CMOS E2PROM devices internally organized as 128 to 2048 words of 8 bits each. These devices utilize Catalyst's advanced low power CMOS technology and operate via the I2C bus serial interface.
Read onlineCatalyst CAT24WC01 specifications
| Memory Capacity | 1K/2K/4K/8K/16K-bit |
|---|---|
| Operating Voltage | 1.8 to 6.0V |
| Program/Erase Cycles | 1,000,000 |
| Data Retention | 100 Years |
| Package Types | 8-pin DIP, SOIC or TSSOP |
Source: Catalyst CAT24WC01/02/04/08/16 Serial E-PROM Datasheet
All Catalyst CAT24WC01 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the temperature ranges for these devices?
The devices cover Commercial, Industrial and Automotive Temperature Ranges from -55°C to +125°C.
From: Catalyst CAT24WC01/02/04/08/16 Serial E-PROM Datasheet
What is the maximum clock frequency for this device?
The device supports a clock frequency of up to 400 kHz.
From: Catalyst CAT24WC01/02/04/08/16 Serial E-PROM Datasheet
How many devices can be cascaded on the bus for the CAT24WC16?
Only one CAT24WC16 device may be connected to the bus.
From: CATALYST CAT24WC01/02/04/08/16 1K/2K/4K/8K/16K-Bit Serial E2 PROM
What is the maximum clock frequency for this device?
The maximum clock frequency supported by the device is 400 kHz.
From: CATALYST CAT24WC01/02/04/08/16 1K/2K/4K/8K/16K-Bit Serial E2 PROM
What is the supply voltage range for the CAT24WC series?
The devices operate from +1.8 V up to +6.0 V.
How many program/erase cycles can the EEPROM endure?
Each device is rated for 1 000 000 program/erase cycles per byte.
