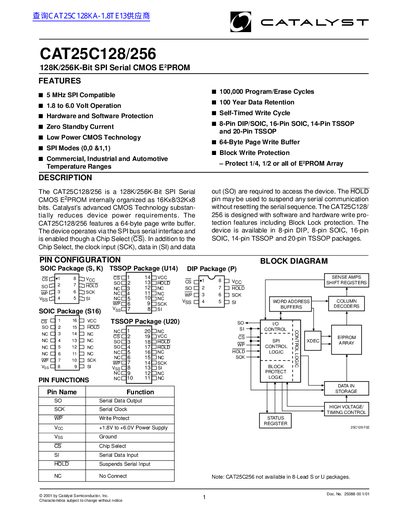

CATALYST CAT25C128/256 128K/256K-Bit SPI Serial CMOS E 2 PROM Manual
This document describes the CAT25C128/256 SPI serial CMOS EEPROM, including its features, electrical characteristics, pin assignments, and functional operation. It covers package options, absolute maximum ratings, reliability data, and detailed timing specifications for read, write, and protection functions.
The datasheet also explains the instruction set, status register bits, block protection scheme, and design considerations such as power‑up behavior and standby mode. Ordering information and temperature‑range options for commercial, industrial, and automotive grades are provided at the end.
Catalyst 256K-BIT specifications
| Operating Voltage | +1.8 V to +6.0 V |
|---|---|
| Program/Erase Cycles | 100,000 cycles |
| Data Retention | 100 years |
| Package Options | 8‑Pin DIP, 8‑Pin SOIC, 16‑Pin SOIC, 14‑Pin TSSOP, 20‑Pin TSSOP |
| Write Current | 10 mA (write) |
| Read Current | 2 mA (read) |
| Standby Current | 0 nA |
Source: CATALYST CAT25C128/256 128K/256K-Bit SPI Serial CMOS E 2 PROM Manual
