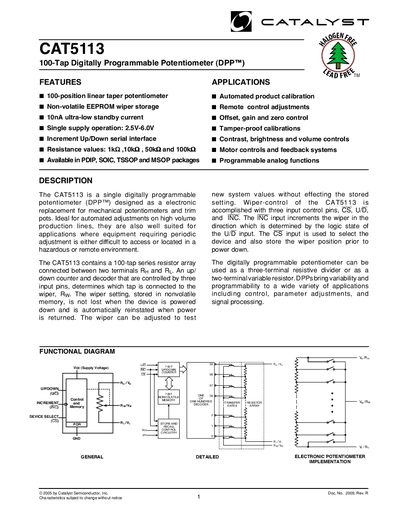

Catalyst CAT5113 Digital Potentiometer Datasheet
The CAT5113 is a single digitally programmable potentiometer (DPP™) that replaces mechanical potentiometers and trim pots. It offers 100 linear‑taper tap positions, non‑volatile EEPROM wiper storage, and a 10 nA ultra‑low standby current. The device is controlled via three input pins (INC, U/D, CS) and operates from a single supply of 2.5 V to 6.0 V.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, reliability data, pin configurations for PDIP, SOIC, TSSOP and MSOP packages, and ordering information. Application examples include automated calibration, remote adjustments, and programmable analog functions.
Catalyst CAT5113 specifications
| Number of taps | 100 |
|---|---|
| Supply voltage range | 2.5 V to 6.0 V |
| Standby current | 10 nA |
| Package options | PDIP, SOIC, TSSOP, MSOP |
| Wiper resistance (Vcc=5 V, Iw=1 mA) | 400 Ω |
| Resolution | 1 % |
| Industrial temperature range | -40 °C to +85 °C |
All Catalyst CAT5113 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the CAT5113?
The device operates from 2.5 V up to 6.0 V.
How many tap positions does the CAT5113 provide?
It provides 100 tap positions.
