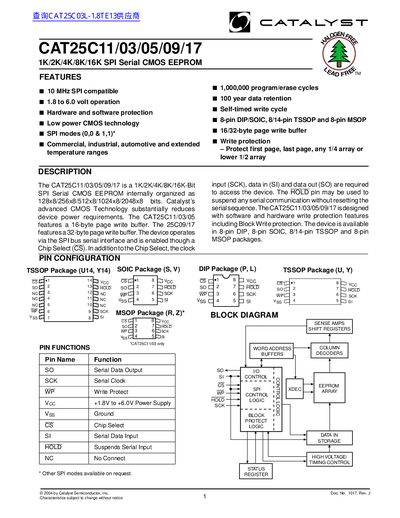

Catalyst CAT25C11/03/05/09/17 EEPROM Datasheet
The CAT25C11/03/05/09/17 family comprises 1K, 2K, 4K, 8K and 16K‑bit SPI serial CMOS EEPROMs with low‑power CMOS technology. Features include up to 10 MHz SPI operation, hardware and software write protection, 1 000 000 program/erase cycles and 100‑year data retention.
Devices are offered in 8‑pin DIP, 8‑pin SOIC, 8/14‑pin TSSOP and 8‑pin MSOP packages and operate from 1.8 V to 6.0 V. They are qualified for commercial, industrial, automotive and extended temperature ranges (‑40 °C to +125 °C) and draw only 10 µA in standby.
Catalyst CAT25C11 specifications
| Memory Density | 1K/2K/4K/8K/16K bits |
|---|---|
| Operating Voltage | 1.8 V to 6.0 V |
| Package Types | 8‑pin DIP, 8‑pin SOIC, 8/14‑pin TSSOP, 8‑pin MSOP |
| Program/Erase Cycles | 1,000,000 cycles |
| Data Retention | 100 years |
| Standby Current | 10 µA (max) |
| Temperature Range | -40 °C to +125 °C (Extended) |
All Catalyst CAT25C11 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum number of program/erase cycles?
The device supports up to 1,000,000 program/erase cycles.
How long can data be retained?
Data can be retained for 100 years.
What is the maximum SPI clock frequency supported by the device?
The device supports up to 10 MHz SPI clock frequency.
From: Catalyst CAT25C11/03/05/09/17 SPI Serial EEPROM Datasheet
How many program/erase cycles can the EEPROM endure?
It is rated for 1 000 000 program/erase cycles.
From: Catalyst CAT25C11/03/05/09/17 SPI Serial EEPROM Datasheet
