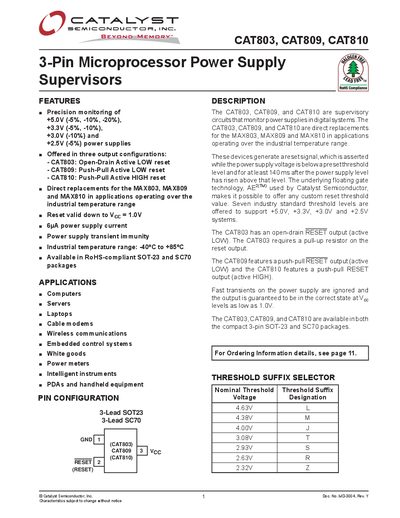

Catalyst Semiconductor CAT803, CAT809, CAT810 Datasheet
The CAT803, CAT809, and CAT810 are 3‑pin micro‑processor power‑supply supervisors that monitor +5.0 V, +3.3 V, +3.0 V and +2.5 V rails. They provide reset signals when the supply voltage falls below programmable thresholds and remain asserted for at least 140 ms after recovery. The devices are direct replacements for the MAX803/809/810 series and operate over an industrial temperature range.
The family is offered in ROHS‑compliant SOT‑23 and SC70 packages, with open‑drain (CAT803) or push‑pull (CAT809, CAT810) reset outputs. Detailed electrical characteristics, typical operating curves, and application notes are provided for designers of computers, servers, embedded systems, and other digital equipment.
Catalyst CAT810 specifications
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Input Current (Voc) | 20 mA |
| Reset Output Current | 20 mA |
| Package Options | SOT‑23, SC70 (ROHS‑compliant) |
Source: Catalyst Semiconductor CAT803, CAT809, CAT810 Datasheet
All Catalyst CAT810 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What type of reset output does the CAT803 have?
The CAT803 has an open‑drain RESET output (active LOW).
From: Catalyst Semiconductor CAT803, CAT809, CAT810 Datasheet
Which package styles are available for the CAT803/809/810 devices?
They are offered in ROHS‑compliant SOT‑23 and SC70 surface‑mount packages.
From: Catalyst Semiconductor CAT803, CAT809, CAT810 Datasheet
What reset polarity does the CAT809 provide?
The CAT809 provides an active‑LOW reset output.
What reset polarity does the CAT810 provide?
The CAT810 provides an active‑HIGH reset output.
