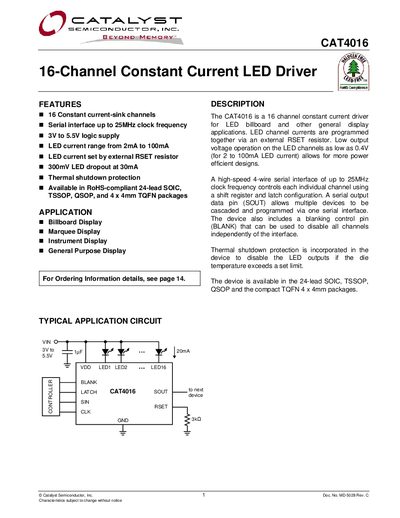

Catalyst CAT4016 16-Channel Constant Current LED Driver Datasheet
The CAT4016 LED driver provides sixteen constant‑current sink channels that can be programmed via a single external RSET resistor. It operates from a 3.0 V to 5.5 V logic supply, supports LED currents from 2 mA to 100 mA, and includes thermal shutdown protection. A 4‑wire serial interface up to 25 MHz allows individual channel control and cascading of multiple devices.
Typical applications include billboard, marquee, instrument and general‑purpose displays. The device is offered in RoHS‑compliant 24‑lead SOIC, TSSOP, QSOP and 4 × 4 mm TQFN packages, with ordering information and pin‑out details provided in the later pages.
Catalyst CAT4016 specifications
| Supply voltage (VDD) | 3.0 V to 5.5 V |
|---|---|
| LED current range | 2 mA to 100 mA |
| LED dropout voltage | 300 mV at 30 mA |
| Maximum LED channel current | 150 mA (absolute max) |
| Serial interface clock frequency | up to 25 MHz |
| Thermal shutdown | Enabled |
| Storage temperature range | -55 °C to +160 °C |
| Junction temperature range | -40 °C to +150 °C |
Source: Catalyst CAT4016 16-Channel Constant Current LED Driver Datasheet
All Catalyst CAT4016 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum LED current per channel?
Each LED channel can handle up to 150 mA absolute maximum, with a typical programmable range up to 100 mA.
From: Catalyst CAT4016 16-Channel Constant Current LED Driver Datasheet
How is the LED current set on the CAT4016?
The LED current is set by an external RSET resistor; the current equals 50 times the current drawn from the RSET pin.
From: Catalyst CAT4016 16-Channel Constant Current LED Driver Datasheet
What is the maximum LED current each channel can handle?
Each LED channel can handle up to 150 mA according to the absolute maximum ratings.
From: Catalyst CAT4016 16-Channel Constant Current LED Driver Datasheet
What is the highest clock frequency the serial interface supports?
The serial interface can operate up to 25 MHz clock frequency.
From: Catalyst CAT4016 16-Channel Constant Current LED Driver Datasheet
