Key facts
- Brand
- ASUS
- Model
- VW193D
- Documents
- 2
- Languages
- JA
- Last added
- 2011-10-19
Start here

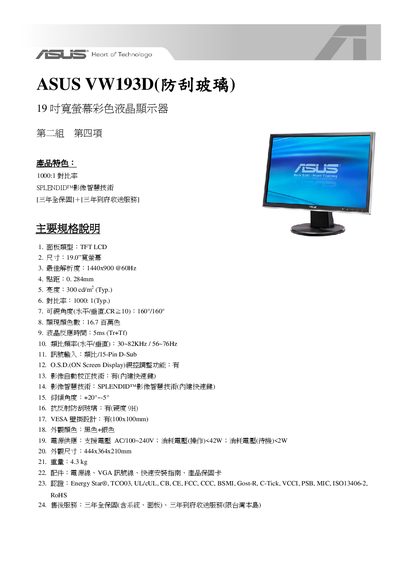

ASUS VW193D Display Manual
The ASUS VW193D is a 19‑inch TFT LCD monitor featuring a 1440x900 native resolution, 1000:1 contrast ratio, and a brightness of 300 cd/m². It supports analog video input via a 15‑pin D‑Sub connector and includes an anti‑glare protective glass with 9H hardness.
The manual lists the monitor’s dimensions, power consumption, warranty (three‑year full warranty with on‑site service), and compliance certifications such as Energy Star, UL, CE, FCC, and RoHS. Accessories include a power cord and VGA cable. This manual is written in Japanese.
ASUS VW193D specifications
| Panel type | TFTLCD |
|---|---|
| Screen size | 19.0" |
| Native resolution | 1440x900 @60Hz |
| Pixel pitch | 0.284 mm |
| Brightness | 300 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) |
| Viewing angle | 160°/160° |
| Color depth | 16.7 million colors |
| Response time | Sms (Tr+Tf) |
| Input connector | Analog 15‑Pin D‑Sub |
| Power supply | AC 100‑240 V |
| Operating power consumption | <42 W |
| Dimensions (W×H×D) | 444 mm × 364 mm × 210 mm |
| Weight | 43 kg |
Source: ASUS VW193D Display Manual
All ASUS VW193D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the native resolution of the ASUS VW193D?
The monitor’s native resolution is 1440 × 900 at 60 Hz.
What warranty does the ASUS VW193D include?
It comes with a three‑year full warranty covering the panel and on‑site service.
