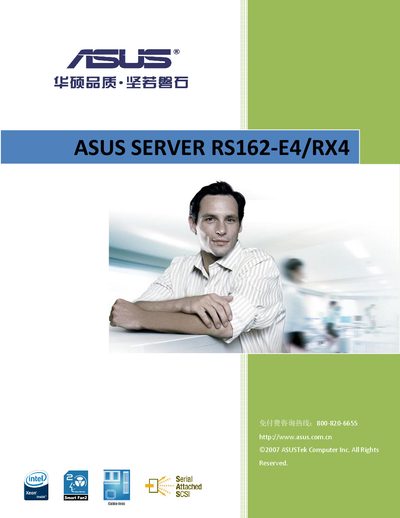

ASUS RS162-E4/RX4 Server Motherboard User Manual
The RS162‑E4/RX4 is a 1U high‑performance server motherboard supporting dual‑ or quad‑core Intel Xeon processors, up to 48 GB of Fully‑Buffered ECC DDR2 memory across 12 slots, and a 700 W redundant hot‑swap power supply. It offers extensive storage options with four hot‑swap SAS/SATA bays and RAID support, as well as multiple PCI‑Express and PCI‑X expansion slots.
The board includes dual‑port Intel 82563EB Gigabit Ethernet, an ATI ES1000 graphics controller, and a range of I/O connectors (VGA, USB 2.0, RJ‑45, serial, PS/2). It is certified for various standards (UL, CE, FCC) and supports Windows Server 2003 R2, Red Hat Enterprise Linux 3/4, and SuSE Linux Enterprise Server 9. This manual is written in Chinese.
ASUS RX4 specifications
| CPU Socket | LGA771 |
|---|---|
| Supported Processors | Dual‑core Intel Xeon 5000/5100 series, Quad‑core Intel Xeon 5300 series |
| Front Side Bus | 667/1066/1333 MHz |
| Memory Slots | 12 Fully‑Buffered DIMM slots |
| Maximum Memory | 48 GB |
| Memory Type | ECC DDR2 533/667 Fully‑Buffered DIMM (4‑channel) |
| Power Supply | 700 W 1+1 hot‑swap redundant |
| Storage Bays | 4 hot‑swap SAS/SATA bays (300 MB/s) |
| Network Controller | Intel 82563EB dual‑port Gigabit Ethernet |
| Graphics | ATI ES1000 with 16 MB DDR SDRAM |
| Supported Operating Systems | Windows Server 2003 R2, Red Hat Enterprise Linux 3/4, SuSE Linux Enterprise Server 9 (32/64‑bit) |
| Dimensions (W×D×H) | 686 mm × 444 mm × 43.4 mm |
All ASUS RX4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What processors are compatible with the RS162‑E4/RX4 motherboard?
It supports dual‑core Intel Xeon 5000/5100 series processors and quad‑core Intel Xeon 5300 series processors.
How many memory modules can be installed and what is the maximum memory capacity?
The board has 12 Fully‑Buffered DIMM slots and can accommodate up to 48 GB of ECC DDR2 memory.
