Key facts
- Brand
- ASRock
- Model
- P4VT8
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-05-04
Start here

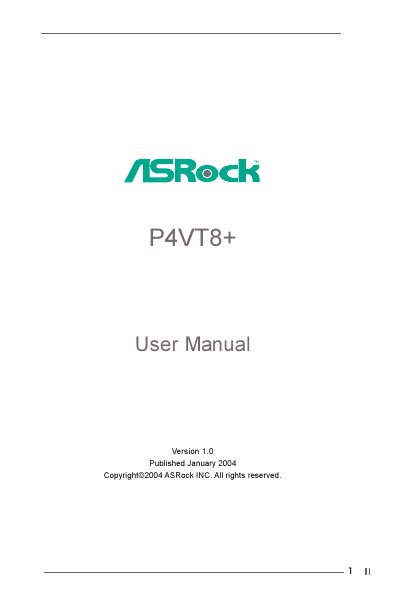

ASRock P4VT8+ User Manual
This manual introduces the ASRock P4VT8+ motherboard, its package contents, layout, and key specifications. It also describes the ASRock I/O PlusTM connectors and the supported CPU, memory, and peripheral interfaces.
The guide covers detailed installation procedures, BIOS setup options, software support, and advanced configuration menus such as security, power, and boot settings, helping users build and configure a reliable DIY system. This manual is written in Chinese.
ASRock P4VT8 specifications
| CPU socket | Socket 478 for Intel Pentium 4 / Celeron |
|---|---|
| North Bridge chipset | VIA PT800, FSB @ 800/533/400 MHz |
| South Bridge chipset | VIA VT8237, supports USB 2.0, ATA 133, SATA 1.5 Gb/s |
| Memory slots | 3 DDR DIMM slots (DDR1, DDR2, DDR3) |
| Maximum memory | Up to 3 GB |
| SATA connectors | 2 SATA ports, 1.5 Gb/s transfer rate |
| USB 2.0 ports | 8 ports (6 rear, plus header for 2 additional) |
| LAN | 10/100 Mbps Ethernet with Wake‑On‑LAN |
| Audio | 5.1‑channel AC’97 audio |
| BIOS type | AMI BIOS |
Source: ASRock P4VT8+ User Manual
All ASRock P4VT8 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the P4VT8+ motherboard use?
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
How many USB 2.0 ports are provided on the motherboard?
The board offers eight USB 2.0 ports – six on the rear panel and a header for two additional ports.
What CPU socket does the P4VT8 motherboard use?
It uses Socket 478 for Intel Pentium 4 and Celeron processors.
How many USB 2.0 ports are provided on the P4VT8 board?
The board provides eight USB 2.0 ports – six on the rear panel and two via an internal header.
