Start here

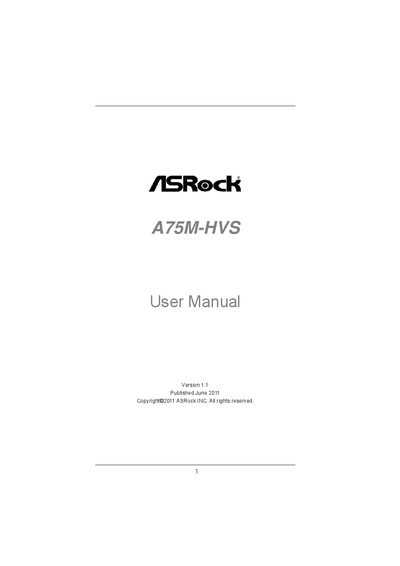

ASRock A75M-HVS User Manual
This manual introduces the ASRock A75M-HVS motherboard and guides users through hardware installation, BIOS setup, and operating‑system installation. It also includes safety notices, warranty information, and contact details.
Key sections cover package contents, detailed specifications, motherboard layout, CPU and memory installation, expansion slots, graphics and audio features, USB and SATA connectors, as well as software support and troubleshooting tips.
ASRock A75M-HVS specifications
| CPU socket | Socket FM1, 100W |
|---|---|
| Chipset | AMD A75 Hudson D3 |
| Memory type | DDR3 2400+ (over‑clocked), dual channel |
| Video outputs | D‑Sub, HDMI |
All ASRock A75M-HVS documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the ASRock A75M-HVS support?
It supports Socket FM1 processors with a 100 W power rating.
Does the motherboard support dual graphics?
Yes, it supports AMD dual‑graphics with HDMI and D‑Sub video outputs.
How do I enable AHCI mode for SATA devices?
Enter the BIOS by pressing <F2> or <Delete> at POST, go to Advanced → Storage Configuration → SATA Mode and select AHCI.
What is the maximum memory the A75M‑HVS can support?
The motherboard supports up to 16 GB of DDR3 memory.
Which Windows operating systems are supported by the ASRock A75M-HVS motherboard?
It supports Windows 7/7 64‑bit, Vista, Vista 64‑bit, Windows XP SP3 and Windows XP 64‑bit.
How many USB 3.0 ports does the A75M-HVS have?
The board provides four USB 3.0 ports.
