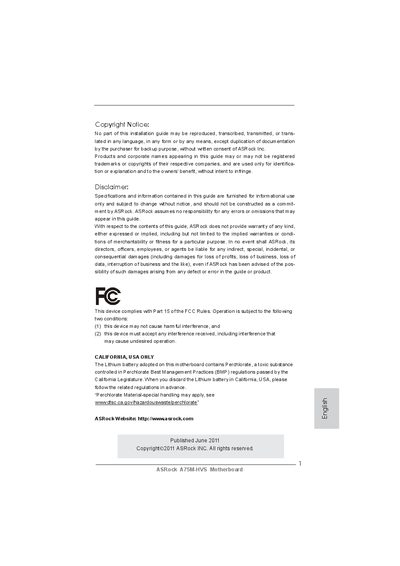

This document is the installation guide for the ASRock A75M-HVS motherboard. It prohibits the reproduction, transcription, transmission, or translation of the guide without the written consent of ASRock Inc, except for backup purposes by the purchaser. The guide provides specifications and information about the product and states that ASRock assumes no responsibility for any errors or omissions in the guide.
This guide provides an overview of the ASRock A75M-HVS motherboard, including the board layout, I/O panel, and key components such as the CPU socket, memory slots, and expansion slots. It also lists the package contents and highlights unique features like the ASRock Extreme Tuning Utility and Instant Flash.
Detailed instructions cover BIOS configuration, enabling AHCI mode, installing the operating system on large‑capacity drives, and configuring audio, video and network settings. Safety warnings and cautions are included to help users avoid damage during installation and over‑clocking.
| Form Factor | Micro ATX (8.9‑in x 8.5‑in) |
|---|---|
| CPU Socket | FM1 (100W processors) |
| Chipset | AMD A75 FCH (Hudson‑D3) |
| Memory Slots | 2 DDR3 DIMM slots (Dual Channel) |
| Maximum Memory Capacity | 16 GB |
| Expansion Slots | 1 × PCIe 2.0 x16, 1 × PCIe 2.0 x1, 1 × PCI |
| Graphics | AMD Radeon HD 65XX/64XX |
| Audio Codec | VIA VT1705 (5.1 CH HD Audio) |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| SATA3 Connectors | 6 × 6 Gb/s ports (RAID, NCQ, AHCI, Hot‑Plug) |
| USB 3.0 Ports | 4 front ports |
Enter the BIOS by pressing
The motherboard supports up to 16 GB of DDR3 memory.
Four USB 3.0 ports are available on the rear panel.
