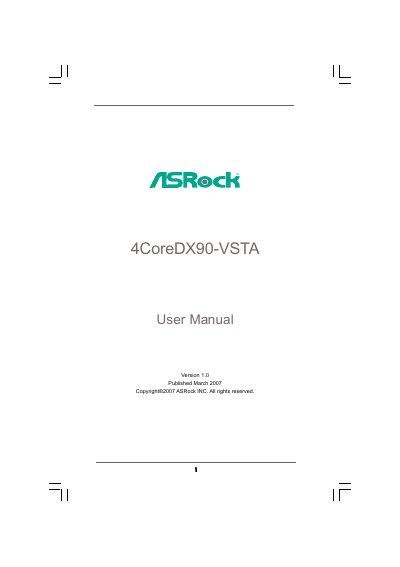

ASRock 4CoreDX90-VSTA User Manual
This manual guides users through the hardware installation of the ASRock 4CoreDX90-VSTA Micro ATX motherboard, including CPU, memory, expansion cards, and cable connections. It also details BIOS configuration options, safety cautions, and software support.
Additional sections cover the support CD utilities, driver installation, and troubleshooting information, with detailed diagrams of the motherboard layout and connector pinouts.
ASRock 4COREDX90-VSTA specifications
| Form Factor | Micro ATX 9.6 in x 8.2 in (24.4 cm x 20.8 cm) |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core 2 Extreme, Core 2 Duo, Pentium XE, Pentium D, Pentium 4, Celeron D |
| Chipset | Northbridge VIA P4Mg00, Southbridge VIA VT8237A |
| Memory Slots | 2 DDR DIMM slots, DDR400/333/266, max 2 GB |
| Expansion Slots | 3 PCI, 1 PCI Express x16, 1 HDMR |
| Audio | 7.1‑channel HD Audio (ALC883 codec) |
| LAN | VIA PHY VT6103, 10/100 Ethernet, Wake‑On‑LAN |
| SATA Connectors | 2 × Serial ATA 1.5 Gb/s (RAID 0/1, Hot Plug) |
Source: ASRock 4CoreDX90-VSTA Motherboard Installation Guide
