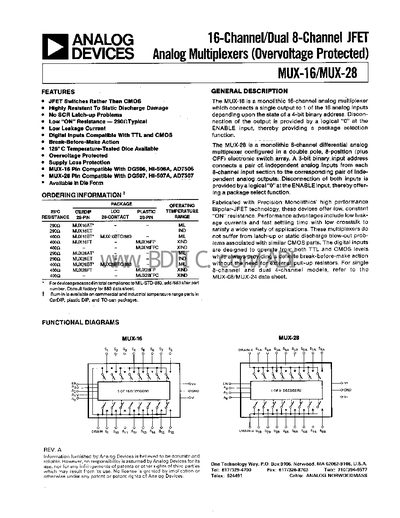

The MUX-16 and MUX-28 are JFET‑based analog multiplexers offering 16‑channel and 8‑channel differential configurations respectively. They feature low ON resistance, high static discharge tolerance, break‑before‑make switching, and are pin‑compatible with several Analog Devices parts.
The document lists detailed electrical characteristics, absolute maximum ratings, typical performance data, and test circuit diagrams, enabling designers to evaluate the devices for a wide range of applications.
| ON Resistance (typical) | 2.9 kΩ |
|---|
The typical ON resistance is about 2.9 kΩ.
