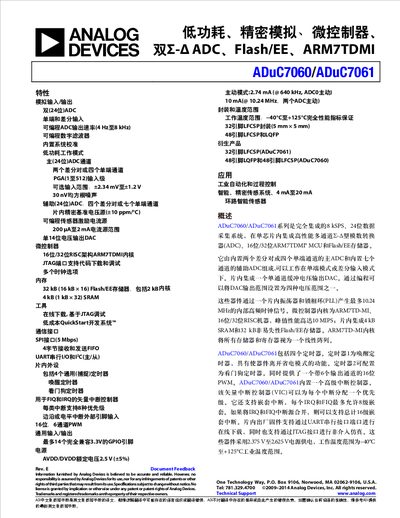

This datasheet details the ADuC7060/ADuC7061 integrated 8 kSPS, 24-bit data acquisition system featuring a Sigma-Delta ADC, ARM7TDMI MCU, and Flash/EE memory.
The ADuC7060/ADuC7061 series is a fully integrated 8 kSPS, 24-bit data acquisition system that combines a high-performance multi-channel Sigma-Delta ADC, a 16/32-bit ARM7TDMI MCU, and Flash/EE memory in a single chip. The device includes a main ADC with two differential pairs or four single-ended channels and an auxiliary ADC with seven channels, capable of operating in single-ended or differential input modes. It also features an internal precision reference voltage source and a 14-bit DAC. This manual is written in Chinese.
| Conversion Rate (Chop Off, Normal Mode) | 8000 Hz |
|---|---|
| Conversion Rate (Chop On, Normal Mode) | 2600 Hz |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage | 2.375 V to 2.625 V |
| Flash/EE Memory Size | 32 kB |
| SRAM Size | 4 kB |
The maximum conversion rate is 8000 Hz when the chop function is off and the ADC is in normal mode.
Yes, it integrates a 16/32-bit RISC architecture ARM7TDMI core.
The device features a 24-bit Sigma-Delta ADC.
