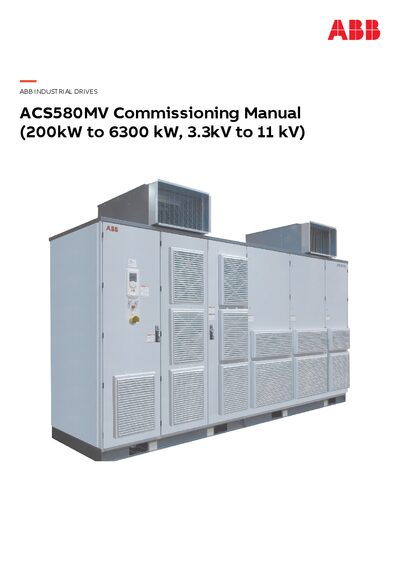

ABB ACS580MV Drive Commissioning Manual

This document is the commissioning manual of the ABB ACS580MV drive, which mainly introduces the commissioning process and precautions of the drive.

Brand: ABB
Document type: Installation Guide
Language: English
Pages: 148
File format: PDF
File size: 17.9 MB
Published: 26 October, 2023
Updated: 26 October, 2023
MD5 checksum: 441263B76ADA9119F2840A9F9EB98846
PDF: ABB ACS580MV Drive Commissioning Manual PDF

About this manual

This manual covers safety instructions, the standard commissioning process, required tools, software loading, and verification steps for ACS580MV drives ranging from 200 kW to 6300 kW and 3.3 kV to 11 kV. It also lists related documents, optional MBU/SBU commissioning procedures, and preventive‑maintenance guidelines.

Additional sections describe digital connectivity, master/follower functionality, and how to obtain further ABB drive documentation, provide feedback, and contact local ABB representatives for product support.

What's inside

Safety Instructions
Introduction
Standard Commissioning Process
Option (MBU/SBU Commissioning)
Preventive Maintenance
Digital Connectivity
Master/Follower Functionality

Specifications

Power rating	200 kW to 6300 kW
Voltage rating	3.3 kV to 11 kV

Frequently asked questions

When was this commissioning manual made effective?

The manual is effective as of 2022‑12‑20.

How can I provide feedback on ABB Drives manuals?

Feedback can be submitted by navigating to new.abb.com/drives/manuals-feedback-form.
