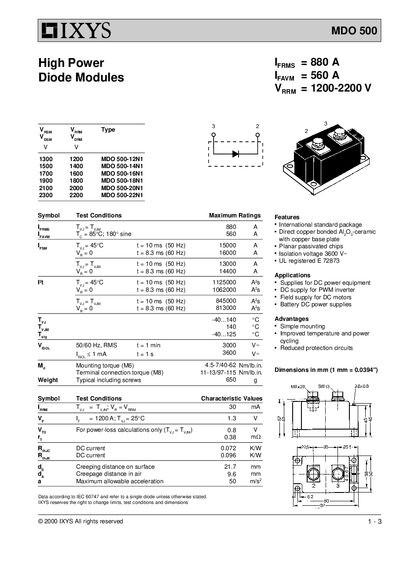

The IXYS MDO 500 datasheet provides specifications, test conditions, and application information for high‑power diode modules.
The datasheet details electrical ratings, test conditions, and thermal characteristics of the IXYS MDO 500 high‑power diode modules, including maximum forward current, reverse voltage, and thermal impedance data.
It also lists typical applications such as DC power supplies, PWM inverters, and motor drives, and highlights advantages like simple mounting, improved temperature cycling, and reduced protection circuitry.
| Maximum forward surge current (IFRMS) | 880 A |
|---|---|
| Maximum average forward current (IFAVM) | 560 A |
| Reverse voltage (VRRM) | 1200‑2200 V |
| Isolation voltage | 3600 V |
The isolation voltage is rated at 3600 V.
The maximum surge forward current (IFRMS) is 880 A and the maximum average forward current (IFAVM) is 560 A.
The modules can handle a reverse voltage between 1200 V and 2200 V.
