DSA 70 C 100 HB is a high performance Schottky diode produced by IXYS. It has very low Vf, extremely low switching losses, low Irm values, improved thermal behavior, high reliability circuit operation, low voltage peaks for reduced protection circuits, and low noise switching.
The DSA 70 C 100 HB is a high‑performance Schottky diode with very low forward voltage, low switching losses and excellent thermal behaviour. It is suited for rectifiers in switch‑mode power supplies and free‑wheeling diodes in low‑voltage converters.

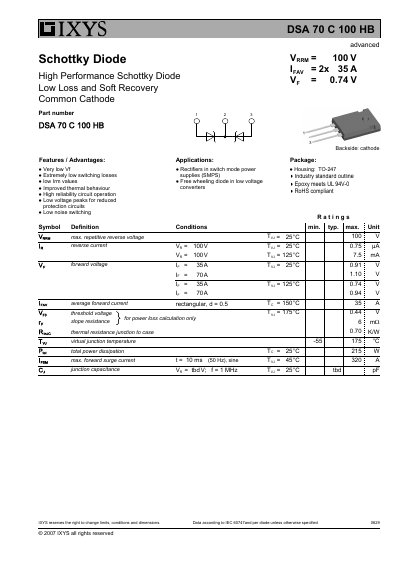

The device is supplied in a common‑cathode TO‑247 package, with a junction‑to‑case thermal resistance of 0.70 K/W and a maximum operating temperature of 150 °C. Detailed dimensions, ratings and mechanical data are listed in the datasheet.
| Typical maximum forward voltage (VF) | 0.44 V |
|---|---|
| Maximum reverse voltage (VRRM) | 100 V |
| Typical forward current (IF) | 0.91 A |
| Thermal resistance junction‑to‑case (RthJC) | 0.70 K/W |
| Package type | TO‑247 common cathode |
| Weight | 6 g |
| Storage temperature range | -55 °C |
| Maximum operating temperature | 150 °C |
The typical maximum forward voltage is 0.44 V.
The diode can withstand up to 100 V reverse voltage.
It is supplied in a common‑cathode TO‑247 package.
The junction‑to‑case thermal resistance is 0.70 K/W.
