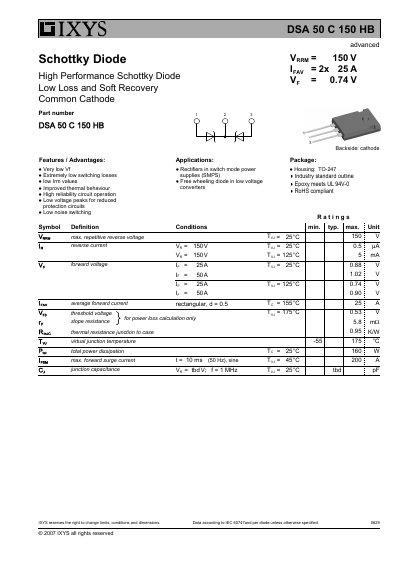

The DSA 50 C 150 HB advanced Schottky diode features very low Vf, extremely low switching losses, low Irm values, improved thermal behavior, high reliability circuit operation, low voltage peaks for reduced protection circuits, and low noise switching.
The DSA 50 C 150 HB is a high‑performance Schottky diode designed for low forward voltage, low switching loss, and excellent thermal behavior. It is intended for use in switch‑mode power supplies, low‑voltage converters, and free‑wheeling applications.
Key specifications include a typical maximum forward voltage of 0.53 V, a reverse voltage rating of 150 V, a junction‑to‑case thermal resistance of 0.95 K/W, and a TO‑247 package. Mechanical data such as weight (6 g) and storage temperature range (‑55 °C) are also provided.
| Maximum reverse voltage (VRRM) | 150 V |
|---|---|
| Thermal resistance junction‑to‑case (RthJC) | 0.95 K/W |
| Package type | TO‑247 |
| Weight | 6 g |
The diode is rated for a maximum reverse voltage of 150 V.
It is supplied in a TO‑247 package.
