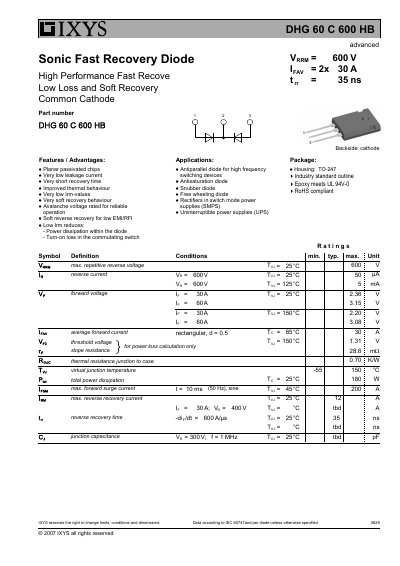

The DHG 60 C 600 HB is a high performance fast recovery diode with the following features: very low leakage current, very short recovery time, improved thermal behavior, very low Irm values, very soft recovery behavior, avalanche voltage rated for reliable operation, soft reverse recovery for low EMI/RFI, low Irm reduces power dissipation within the diode and turn-on loss in the commutating switch.
The DHG 60 C 600 HB is a high‑performance fast recovery diode featuring planar passivated chips, very low leakage current, short recovery time, and soft reverse recovery for low EMI/RFI. It offers low IRM values, improved thermal behaviour, and an avalanche voltage rating for reliable operation.
Typical applications include antiparallel, antisaturation, snubber, free‑wheeling, and rectifier diodes in switch‑mode power supplies and UPS systems. The device is supplied in a common‑cathode TO‑247 package with a weight of 6 g and operates from –55 °C to 150 °C storage and service temperatures. This manual is written in Chinese.
| Maximum repetitive reverse voltage (VRRM) | 600 V |
|---|---|
| Average forward current (IF(AV)) | 2.36 A |
| Maximum forward surge current (IFSM) | 200 A |
| Thermal resistance junction‑to‑case (RthJC) | 0.70 K/W |
| Package type | Common Cathode TO‑247 |
| Weight | 6 g |
| Storage temperature range | -55 °C |
| Maximum operating temperature | 150 °C |
| RMS current rating (IRMS) | 70 A |
The diode is rated for a maximum repetitive reverse voltage of 600 V.
It is supplied in a common‑cathode TO‑247 package.
The typical average forward current is 2.36 A.
