Preliminary data sheet for IXYS IXGH and IXGT 45N120 IGBTs, detailing electrical characteristics, maximum ratings, and mechanical dimensions for TO-247 AD…

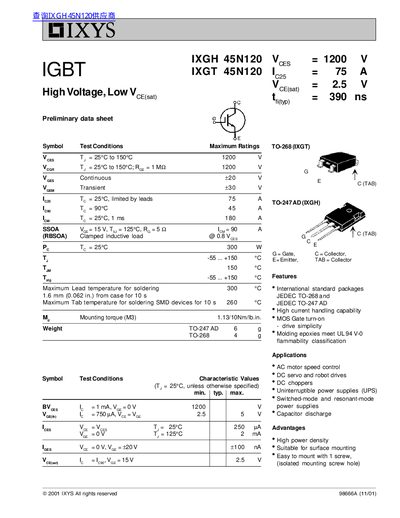

This document is a preliminary data sheet for the IXYS IXGH 45N120 and IXGT 45N120 IGBTs. It covers key features such as high current handling capability, MOS gate turn-on simplicity, and suitability for surface mounting. The devices are designed for applications including AC motor speed control, DC servo drives, and switched-mode power supplies.
| Continuous Collector Current | 75 A |
|---|---|
| Collector-Emitter Saturation Voltage | 2.5 V |
| Turn-off Time | 390 ns |
| Operating Temperature Range | -55 ... +150 °C |
| Package Weight (TO-247 AD) | 6 g |
The device is available in JEDEC TO-268 and JEDEC TO-247 AD packages.
The typical turn-off time is 390 ns.
