This document is about the specifications and dimensions of Glenair, Inc. products. It includes information on the maximum dimensions, shell finish, and connector size of different sizes of backshells. The products have various options for shell finish and size, suitable for different application scenarios.

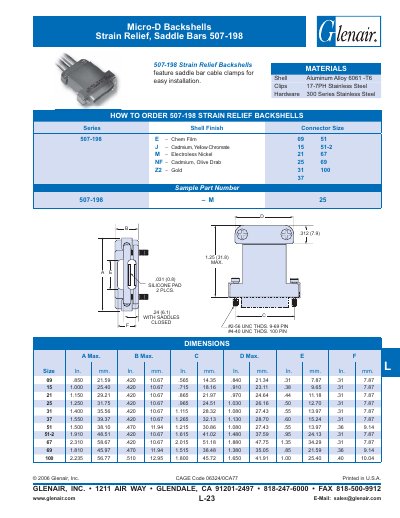

The Glenair L-23 Micro‑D backshells are strain‑relief components with saddle‑bar cable clamps for easy installation. The sheet lists the available series (507‑198) and the various shell finishes such as Chem Film, Cadmium‑Yellow Chromate, Electroless Nickel, and Gold.
Detailed dimensions for each size, material construction (Aluminum 6061‑T6 shell, 17‑7PH stainless‑steel clips and hardware), and part numbers for ordering are provided, along with a brief ordering guide.
| Maximum A dimension (size 09) | 0.850 in (21.59 mm) |
|---|---|
| Maximum B dimension (size 09) | 0.420 in (10.67 mm) |
| Shell material | Aluminum Alloy 6061‑T6 |
| Clip material | 17‑7PH Stainless Steel |
The part numbers follow the format 507‑198‑[finish] (e.g., 507‑198‑M for electroless nickel).
Use the listed part numbers and contact Glenair sales ([email protected]) or reference the ordering table in the leaflet.
