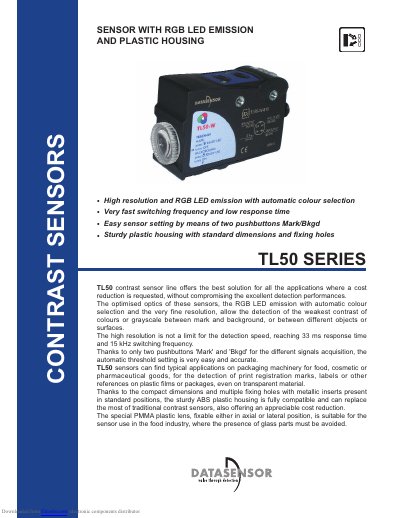

The DATASENSOR TL50 Series is a contrast sensor with RGB LED emission and automatic color selection, designed for packaging machinery to detect marks on…
The TL50 series contrast sensor features RGB LED emission with automatic colour selection, high resolution, fast switching frequency, and low response time. It is designed for applications such as packaging machinery for food, cosmetics, or pharmaceutical goods, where it can detect print registration marks, labels, or references on plastic films or packages.
The sensor has a sturdy ABS plastic housing with standard dimensions and fixing holes, offering cost reduction without compromising performance. The special PMMA plastic lens is suitable for use in the food industry to avoid glass parts. It features easy setting via two pushbuttons (Mark/Bkgd) and automatic threshold selection.
| Power supply | 10…30 Vdc |
|---|---|
| Consumption | 50 mA max @ 24 Vdc |
| Light emission | RGB LED (465 nm blue, 520 nm green, 630 nm red) |
| Spot dimension | 1.5 x 5 mm @ 9 mm |
| Operating distance | 9 mm ± 3 mm |
| Response time | 33 µs |
| Switching frequency | 15 kHz |
| Output current | 100 mA max. |
| Housing material | ABS |
| Lens material | PMMA |
The response time is 33 µs.
Acquisition is made by pressing the MARK and BKGD pushbuttons.
It provides PNP and NPN bipolar outputs.
